QH::PKG::AbstractData Class Reference

The AbstractData class is provide base functions for transport data by network For create you own package you need to inherited from this class. Simple Example: More...

#include <abstractdata.h>

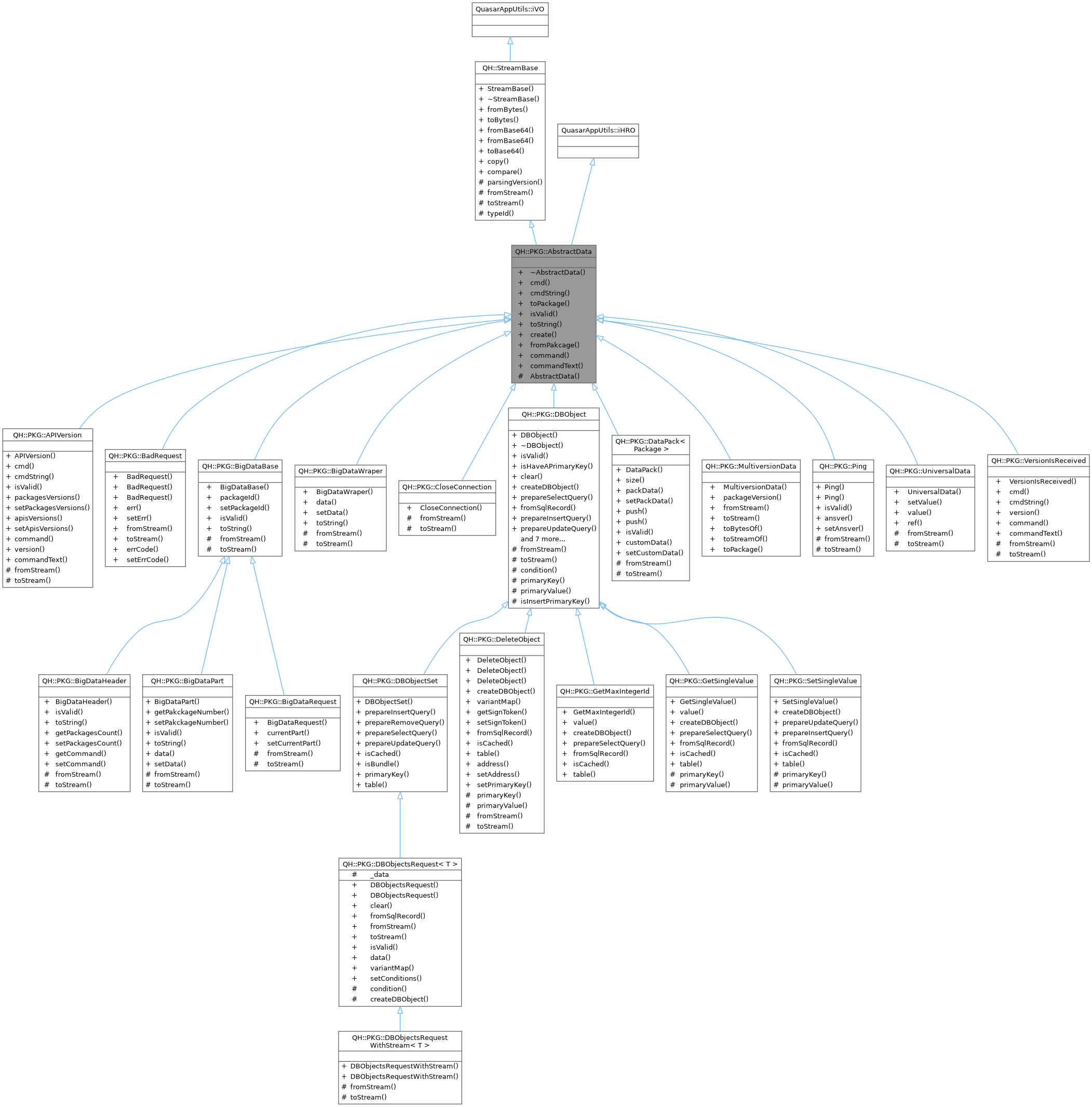

Inheritance diagram for QH::PKG::AbstractData:

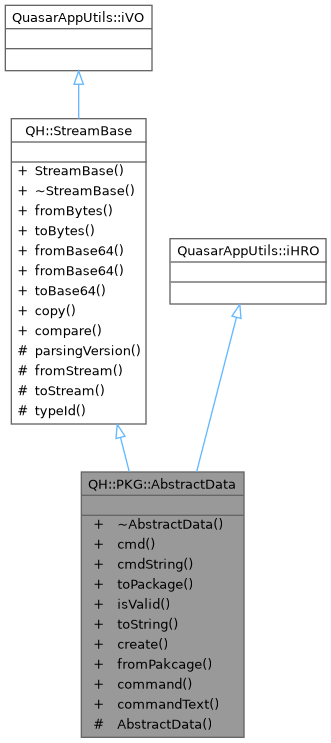

Collaboration diagram for QH::PKG::AbstractData:

Public Member Functions
	~AbstractData () override
virtual unsigned short	cmd () const =0
	cmd - This is command of this object, (for generate cmd use macross QH_PACKAGE)
virtual QString	cmdString () const =0
	cmdString - This is command string of this object, (for generate cmd use macross QH_PACKAGE)
virtual bool	toPackage (Package &package, const DistVersion &reqVersion, unsigned int triggerHash=0) const
	toPackage This method convert this class object to the package. For more info see Package class.
bool	isValid () const override
	isValid This method check current object to valid.
QString	toString () const override
	toString - Return a string implementation for this object.
template<class C, class... Args>
C *	create (Args &&... args) const
	create - This is factory method for create a new object.
void	fromPakcage (const Package &pkg)
	fromPakcage - This method initialize the current object from a package class object.
Public Member Functions inherited from QH::StreamBase
	StreamBase ()
virtual	~StreamBase ()
bool	fromBytes (const QByteArray &dataz)
	fromBytes This method provide initialization of object from byte array.
QByteArray	toBytes () const
	toBytes This method convert a current object to bytes array.
bool	fromBase64 (const QString &data)
	fromBase64 This method provide initialization of object from the base64 string.
bool	fromBase64 (const QByteArray &data)
	fromBase64 This method provide initialization of object from the base64 string.
QByteArray	toBase64 () const
	toBase64 This method convert a current object to the base64 string.
template<class T>
T &	copy (const StreamBase &right)
	copy This is base copy method for all StreamBase structures. Default implementation it is copy from byteArray.
template<class T>
bool	compare (const T &right)
	compare This method compare array signatures of this and right objects.

Static Public Member Functions
static unsigned int	command ()
	command This static method that return glaball code of this object.
static QString	commandText ()
	commandText This method return text of package command

Protected Member Functions
	AbstractData ()
	AbstractData - Base constructor of this object.
Protected Member Functions inherited from QH::StreamBase
virtual int	parsingVersion () const
	parsingVersion this method return parsing version of Qt. By Default is 0 (last available parsing). see https://doc.qt.io/qt-6/qdatastream.html#Version-enum
virtual QDataStream &	fromStream (QDataStream &stream)=0
	fromStream This method should be read all bytes from the stream object and full the current object.
virtual QDataStream &	toStream (QDataStream &stream) const =0
	fromStream This method should be write all members of the current object to the stream object.
virtual unsigned int	typeId () const
	typeId This method return id of type.

Detailed Description

The AbstractData class is provide base functions for transport data by network For create you own package you need to inherited from this class. Simple Example:

   class MyPackage: public QH::AbstractData
{
    QH_PACKAGE_AUTO_VER(MyPackage, 1)
public:
    MyPackage();

    // your data for for server of client
    std::string _data = "";

protected:
    // StreamBase interface override this methods for serialization your package
    QDataStream &fromStream(QDataStream &stream) {
        stream >> _data;
        return stream;
    }
    QDataStream &toStream(QDataStream &stream) const {
        stream << _data;
        return stream;
    }

};

This is simple implementation of package for transport text data. You need to override 2 serialization methods (fromStream and toStream).

See also

AbstractNode

Definition at line 82 of file abstractdata.h.

Constructor & Destructor Documentation

~AbstractData()

QH::PKG::AbstractData::~AbstractData ( )

override

Definition at line 55 of file abstractdata.cpp.

AbstractData()

QH::PKG::AbstractData::AbstractData ( )

explicitprotected

AbstractData - Base constructor of this object.

Definition at line 18 of file abstractdata.cpp.

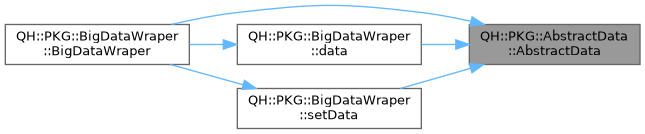

Here is the caller graph for this function:

Member Function Documentation

cmd()

virtual unsigned short QH::PKG::AbstractData::cmd ( ) const

pure virtual

cmd - This is command of this object, (for generate cmd use macross QH_PACKAGE)

Note

Use the QH_PACKAGE macross for implement this method.

Returns

global command of package.

See also

QH_PACKAGE

Implemented in QH::PKG::APIVersion, and QH::PKG::VersionIsReceived.

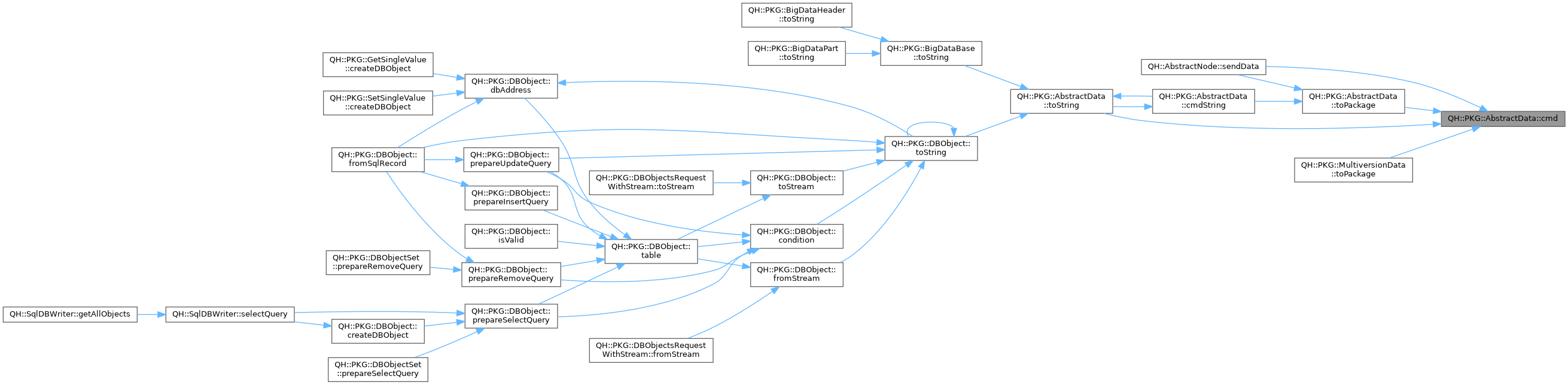

Here is the caller graph for this function:

cmdString()

virtual QString QH::PKG::AbstractData::cmdString ( ) const

pure virtual

cmdString - This is command string of this object, (for generate cmd use macross QH_PACKAGE)

Note

Use the QH_PACKAGE macross for implement this method.

Returns

global command of package.

See also

QH_PACKAGE

Implemented in QH::PKG::APIVersion, and QH::PKG::VersionIsReceived.

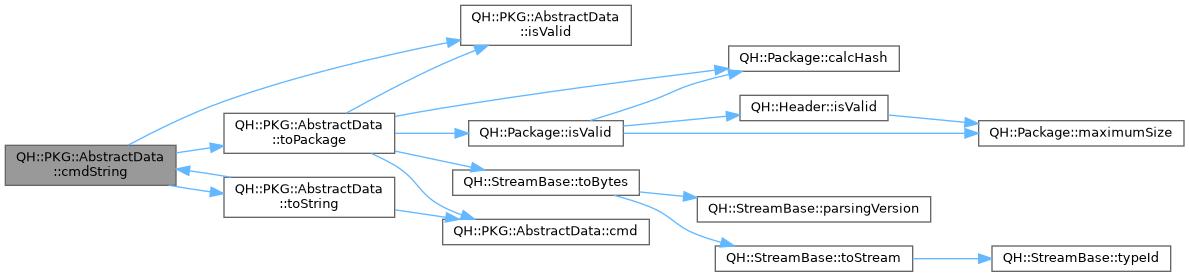

Here is the call graph for this function:

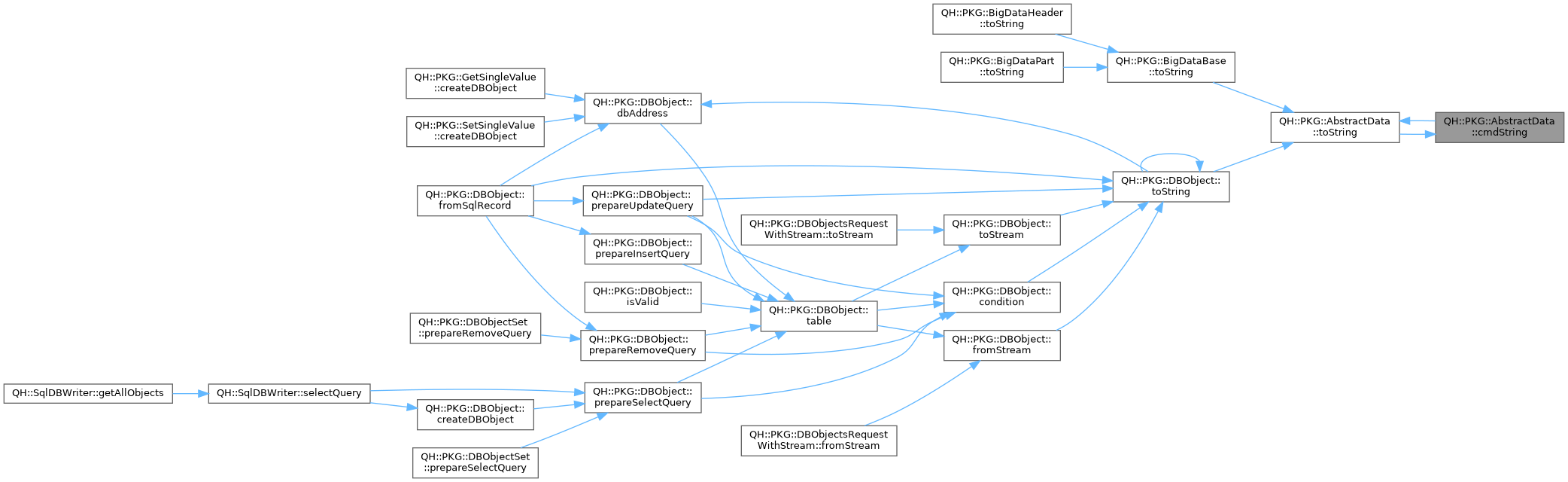

Here is the caller graph for this function:

command()

unsigned int QH::PKG::AbstractData::command ( )

inlinestatic

command This static method that return glaball code of this object.

Note

This method generated automaticaly in the QH_PACKAGE macross.

Returns

global code

See also

QH_PACKAGE

Definition at line 149 of file abstractdata.h.

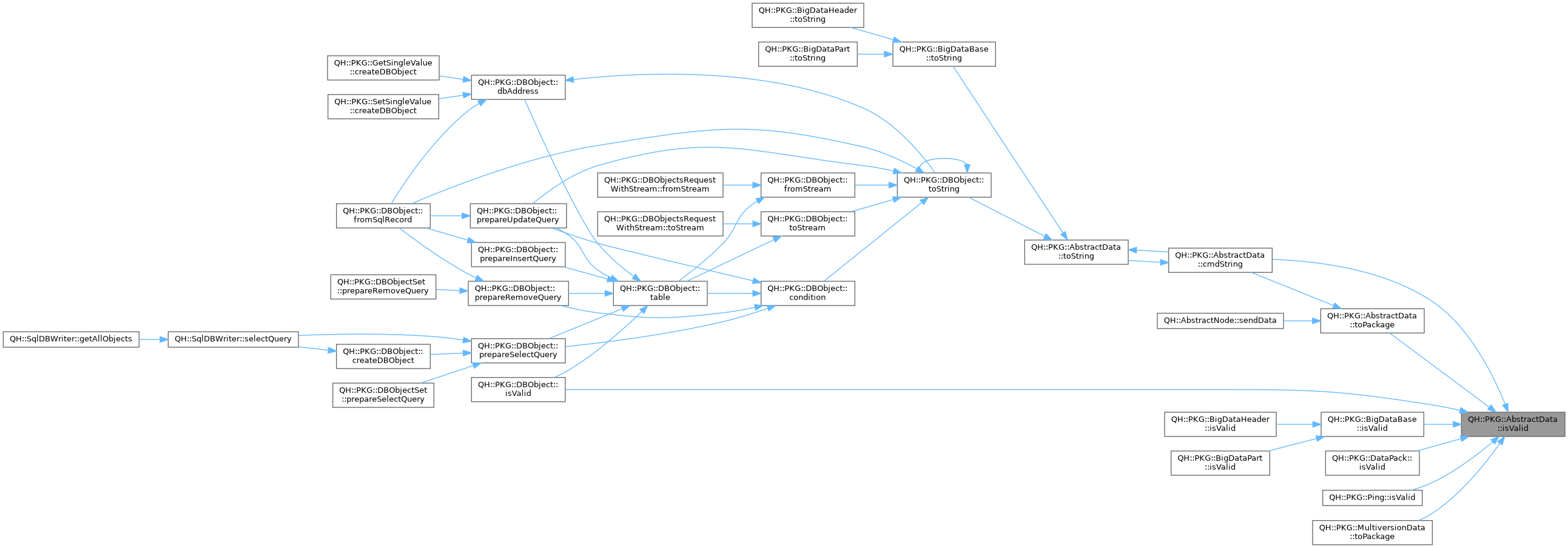

Here is the caller graph for this function:

commandText()

QString QH::PKG::AbstractData::commandText ( )

inlinestatic

commandText This method return text of package command

Returns

text of pacakge command

Definition at line 155 of file abstractdata.h.

create()

template<class C, class... Args>

C * QH::PKG::AbstractData::create ( Args &&... args ) const

inline

create - This is factory method for create a new object.

Parameters

args	- List of arguments for create object.

Returns

Pointer to created object.

Definition at line 132 of file abstractdata.h.

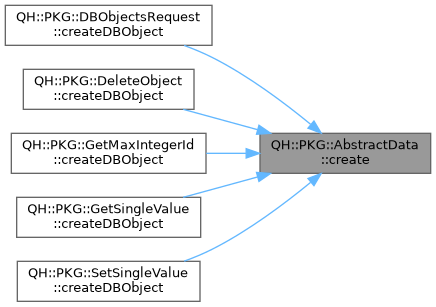

Here is the caller graph for this function:

fromPakcage()

void QH::PKG::AbstractData::fromPakcage

(

const Package &

pkg

)

fromPakcage - This method initialize the current object from a package class object.

Parameters

pkg	- Input package value.

Definition at line 51 of file abstractdata.cpp.

Here is the call graph for this function:

isValid()

bool QH::PKG::AbstractData::isValid ( ) const

override

isValid This method check current object to valid.

Returns

True if class isValid.

Definition at line 40 of file abstractdata.cpp.

Here is the caller graph for this function:

toPackage()

bool QH::PKG::AbstractData::toPackage ( Package & package, const DistVersion & reqVersion, unsigned int triggerHash = 0 ) const

virtual

toPackage This method convert this class object to the package. For more info see Package class.

Parameters

package	This is return value of Package class.
reqVersion	This is required version. This method create package of the needed version.
triggerHash	This is hash of the package the current class is responding to.

Returns

True if convert to package finished successful.

Reimplemented in QH::PKG::MultiversionData.

Definition at line 21 of file abstractdata.cpp.

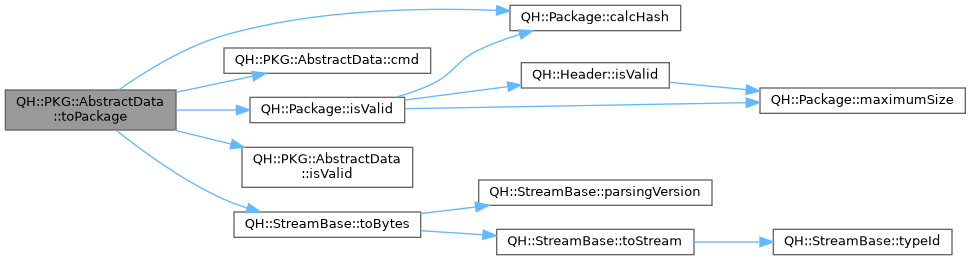

Here is the call graph for this function:

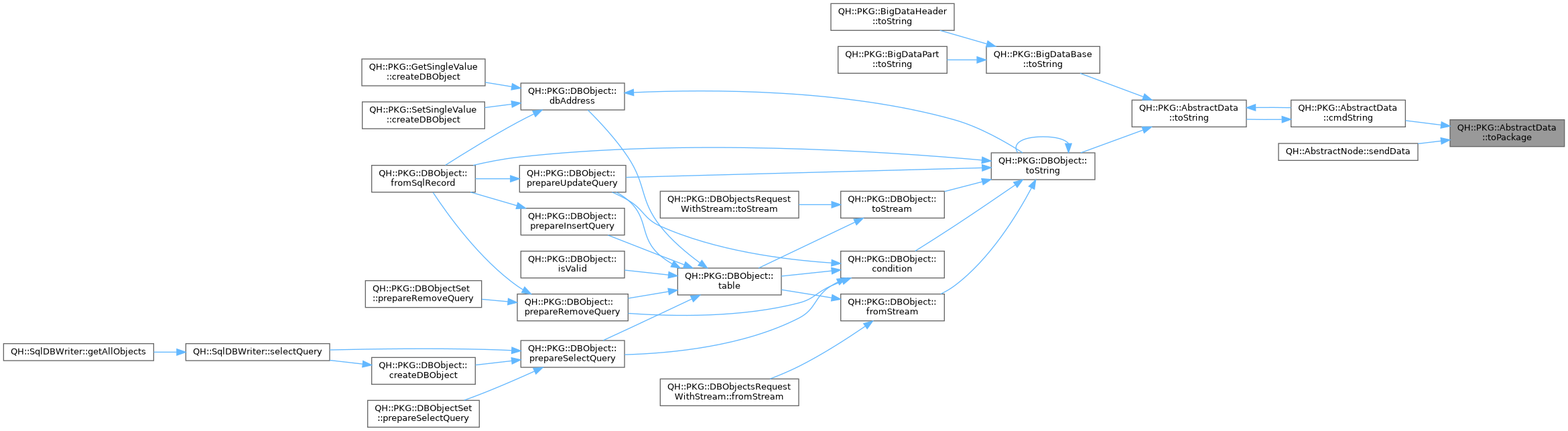

Here is the caller graph for this function:

toString()

QString QH::PKG::AbstractData::toString ( ) const

override

toString - Return a string implementation for this object.

Returns

String of object.

Definition at line 44 of file abstractdata.cpp.

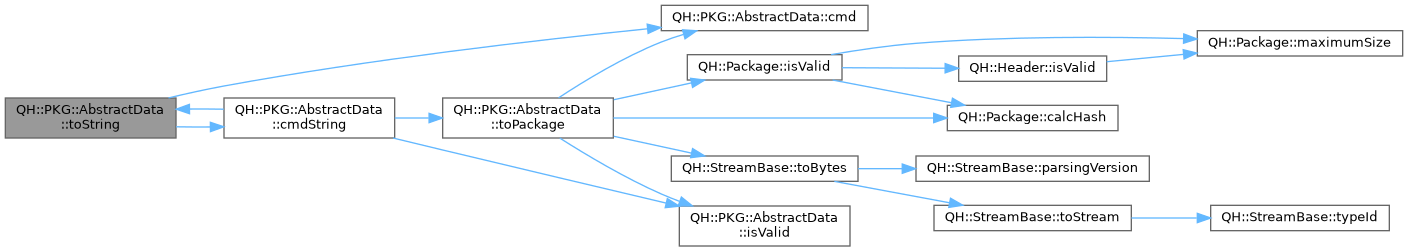

Here is the call graph for this function:

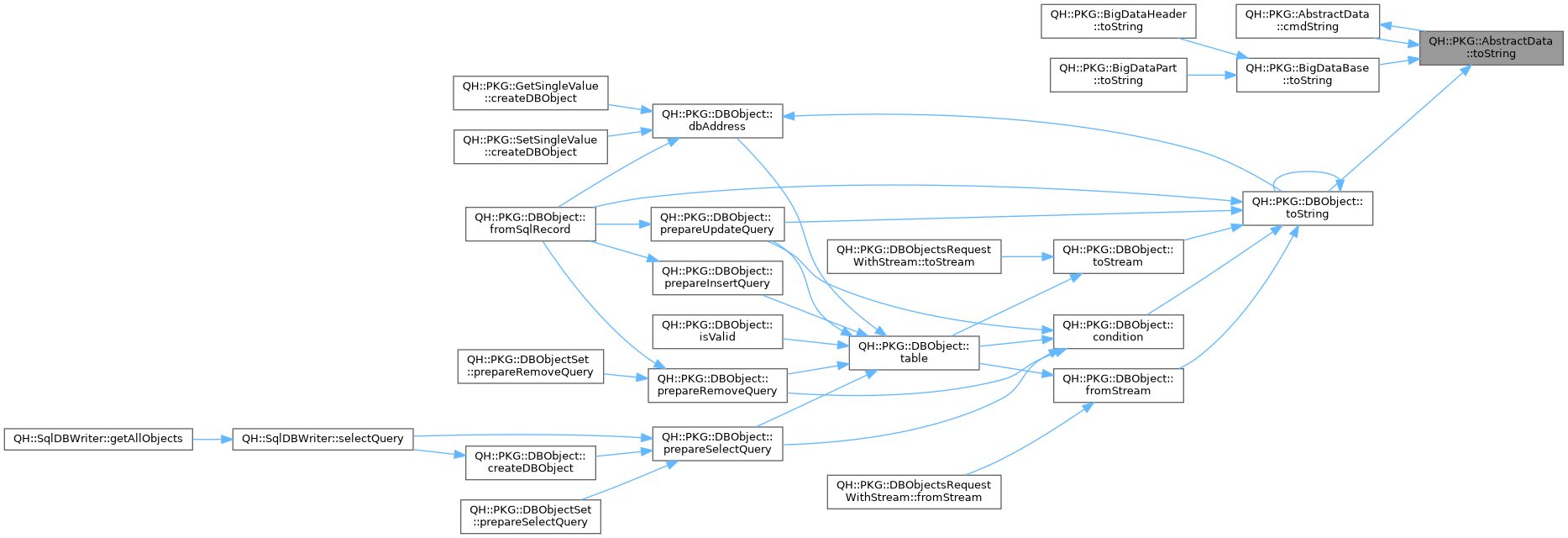

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/public/packages/abstractdata.h
• src/public/packages/abstractdata.cpp
