abstractdata.h File Reference

#include "distversion.h"
#include "humanreadableobject.h"
#include "package.h"
#include <QSharedPointer>
#include <streambase.h>
#include <crc/crchash.h>

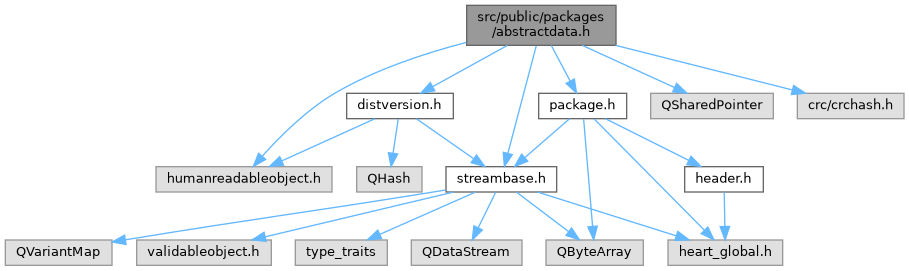

Include dependency graph for abstractdata.h:

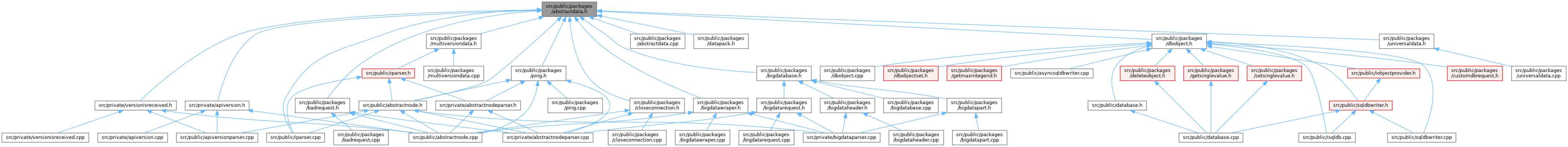

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	QH::PKG::AbstractData
	The AbstractData class is provide base functions for transport data by network For create you own package you need to inherited from this class. Simple Example: More...

Namespaces
namespace	QH
	The QH namespace - QuasarApp Heart namespace. This namespace contains all classes of the Heart library.
namespace	QH::PKG
	The PKG namesapce - this namespace contains all default packages of the Heart library. If you want create a pool request for Heart Library with own implemented packages you need to create a new package into a PKG namesapce.

Macros
#define	PROTOCKOL_VERSION_COMMAND   0xFFFF
	PROTOCKOL_VERSION_COMMAND is command for exchange versions number betwin nodes.
#define	PROTOCKOL_VERSION_RECEIVED_COMMAND   PROTOCKOL_VERSION_COMMAND - 1
	PROTOCKOL_VERSION_RECEIVED_COMMAND is command for check delivered version.
#define	QH_PACKAGE(S)
	QH_PACKAGE This macross prepare data to send and create a global id for package. For get global id use the cmd method. For get quick access for global command use the ClassName::command() method. This method is static.

Macro Definition Documentation

PROTOCKOL_VERSION_COMMAND

#define PROTOCKOL_VERSION_COMMAND   0xFFFF

PROTOCKOL_VERSION_COMMAND is command for exchange versions number betwin nodes.

Definition at line 20 of file abstractdata.h.

PROTOCKOL_VERSION_RECEIVED_COMMAND

#define PROTOCKOL_VERSION_RECEIVED_COMMAND   PROTOCKOL_VERSION_COMMAND - 1

PROTOCKOL_VERSION_RECEIVED_COMMAND is command for check delivered version.

Definition at line 25 of file abstractdata.h.

QH_PACKAGE

#define QH_PACKAGE

(

S

)

Value:

public: \
 static unsigned short command(){\
     QByteArray ba = QString(S).toLocal8Bit();\
     return qa_common::hash16(ba.data(), ba.size());\
 } \
 static QString commandText(){return S;} \
 unsigned short cmd() const override {return command();} \
\
 QString cmdString() const override {return S;} \
private:

QH_PACKAGE This macross prepare data to send and create a global id for package. For get global id use the cmd method. For get quick access for global command use the ClassName::command() method. This method is static.

• S This is unique id of the pacakge. Shold be some on all your network devices.

Definition at line 34 of file abstractdata.h.
