QH::DistVersion Class Reference

The DistVersion class This is information of supported versions of the destinations api. More...

#include <distversion.h>

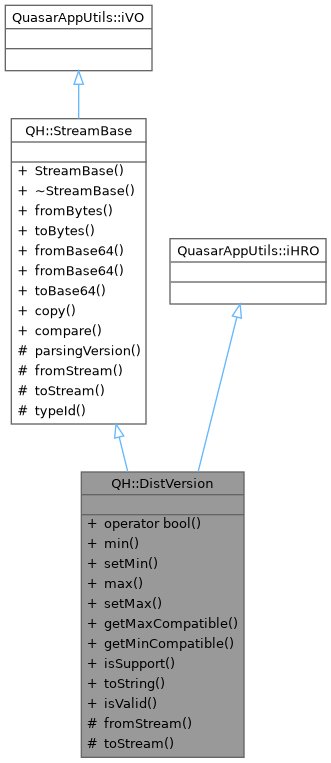

Inheritance diagram for QH::DistVersion:

Collaboration diagram for QH::DistVersion:

Public Member Functions
	operator bool () const
unsigned short	min () const
void	setMin (unsigned short newMin)
unsigned short	max () const
void	setMax (unsigned short newMax)
int	getMaxCompatible (const DistVersion &distVersion) const
	getMaxСompatible return maximum available on booth nodes version.
int	getMinCompatible (const DistVersion &distVersion) const
	getMinСompatible return maximum available on booth nodes version.
bool	isSupport (unsigned short version) const
	isSupport This method return true if the version is supported of this versions range.
QString	toString () const override
bool	isValid () const override
Public Member Functions inherited from QH::StreamBase
	StreamBase ()
virtual	~StreamBase ()
bool	fromBytes (const QByteArray &dataz)
	fromBytes This method provide initialization of object from byte array.
QByteArray	toBytes () const
	toBytes This method convert a current object to bytes array.
bool	fromBase64 (const QString &data)
	fromBase64 This method provide initialization of object from the base64 string.
bool	fromBase64 (const QByteArray &data)
	fromBase64 This method provide initialization of object from the base64 string.
QByteArray	toBase64 () const
	toBase64 This method convert a current object to the base64 string.
template<class T>
T &	copy (const StreamBase &right)
	copy This is base copy method for all StreamBase structures. Default implementation it is copy from byteArray.
template<class T>
bool	compare (const T &right)
	compare This method compare array signatures of this and right objects.

Protected Member Functions
QDataStream &	fromStream (QDataStream &stream) override
	fromStream This method should be read all bytes from the stream object and full the current object.
QDataStream &	toStream (QDataStream &stream) const override
	fromStream This method should be write all members of the current object to the stream object.
Protected Member Functions inherited from QH::StreamBase
virtual int	parsingVersion () const
	parsingVersion this method return parsing version of Qt. By Default is 0 (last available parsing). see https://doc.qt.io/qt-6/qdatastream.html#Version-enum
virtual unsigned int	typeId () const
	typeId This method return id of type.

Detailed Description

The DistVersion class This is information of supported versions of the destinations api.

Definition at line 21 of file distversion.h.

Member Function Documentation

fromStream()

QDataStream & QH::DistVersion::fromStream ( QDataStream & stream )

overrideprotectedvirtual

fromStream This method should be read all bytes from the stream object and full the current object.

Note

The implementation of this method should be invoke a method of base class.

Parameters

stream

This is Qt stream object.

Returns

Qt stream object.

Examle of base simple implementation:

QDataStream &ExampleClass::fromStream(QDataStream &stream) const {
    StreamBase::toStream(stream);
    stream >> exampleMember;
    return stream;
}

Implements QH::StreamBase.

Definition at line 47 of file distversion.cpp.

getMaxCompatible()

int QH::DistVersion::getMaxCompatible

(

const DistVersion &

distVersion

)

const

getMaxСompatible return maximum available on booth nodes version.

Parameters

distVersion

this is dis version.

Returns

return maximum version. if this version is not found return "-1"

Definition at line 19 of file distversion.cpp.

Here is the call graph for this function:

getMinCompatible()

int QH::DistVersion::getMinCompatible

(

const DistVersion &

distVersion

)

const

getMinСompatible return maximum available on booth nodes version.

Parameters

distVersion

this is dis version.

Returns

return minimum version. if this version is not found return "-1"

Definition at line 29 of file distversion.cpp.

Here is the call graph for this function:

isSupport()

bool QH::DistVersion::isSupport

(

unsigned short

version

)

const

isSupport This method return true if the version is supported of this versions range.

Parameters

version

This is checked version.

Returns

true if the version is supported of this versions range.

Definition at line 39 of file distversion.cpp.

isValid()

bool QH::DistVersion::isValid ( ) const

override

Definition at line 72 of file distversion.cpp.

max()

unsigned short QH::DistVersion::max

(

)

const

Definition at line 11 of file distversion.cpp.

Here is the caller graph for this function:

min()

unsigned short QH::DistVersion::min

(

)

const

Definition at line 64 of file distversion.cpp.

Here is the caller graph for this function:

operator bool()

QH::DistVersion::operator bool

(

)

const

Definition at line 60 of file distversion.cpp.

setMax()

void QH::DistVersion::setMax

(

unsigned short

newMax

)

Definition at line 15 of file distversion.cpp.

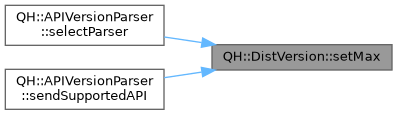

Here is the caller graph for this function:

setMin()

void QH::DistVersion::setMin

(

unsigned short

newMin

)

Definition at line 68 of file distversion.cpp.

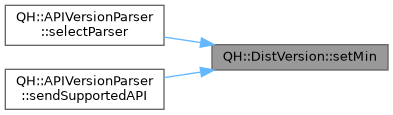

Here is the caller graph for this function:

toStream()

QDataStream & QH::DistVersion::toStream ( QDataStream & stream ) const

overrideprotectedvirtual

fromStream This method should be write all members of the current object to the stream object.

Note

The implementation of this method should be invoke a method of base class.

Parameters

stream

This is Qt stream object.

Returns

Qt stream object.

Examle of base simple implementation:

QDataStream &ExampleClass::toStream(QDataStream &stream) const {
    StreamBase::toStream(stream);
    stream << exampleMember;
    return stream;
}

Implements QH::StreamBase.

Definition at line 54 of file distversion.cpp.

toString()

QString QH::DistVersion::toString ( ) const

override

Definition at line 43 of file distversion.cpp.

---

The documentation for this class was generated from the following files:

• src/public/distversion.h
• src/public/distversion.cpp
