The MultiversionData class This class add support for multiple versions of ne command/package. If you need to add support multiple versions make your pakcage class children of the MultiversionData class. More...

#include <multiversiondata.h>

Inheritance diagram for QH::PKG::MultiversionData:

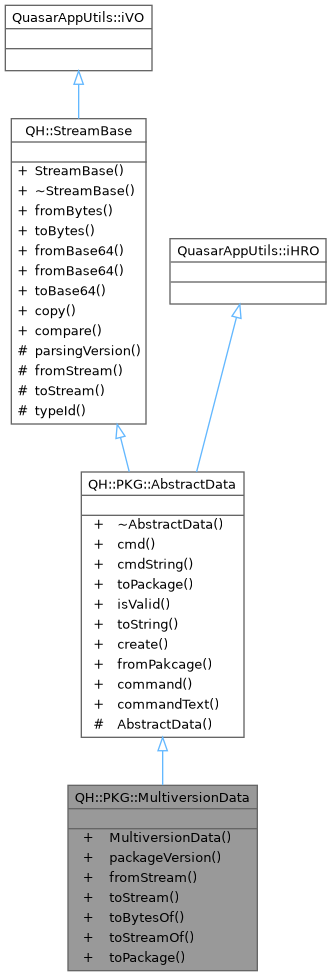

Collaboration diagram for QH::PKG::MultiversionData:

Public Member Functions
	MultiversionData (const QMap< unsigned short, SerializationBox > &serializers)
	MultiversionData main constructor.
const DistVersion &	packageVersion () const
	packageVersion This method should be return number of the pacakge version.
QDataStream &	fromStream (QDataStream &stream) override final
	fromStream This method should be read all bytes from the stream object and full the current object.
QDataStream &	toStream (QDataStream &stream) const override final
	fromStream This method should be write all members of the current object to the stream object.
QByteArray	toBytesOf (const DistVersion &version) const
	toBytesOf This is overload method of StreamBase::toBytes for support multi versions of packages.
QDataStream &	toStreamOf (QDataStream &stream, const DistVersion &version) const
	toStreamOf This overrload of the base toStream method for support the multi version packages.
bool	toPackage (Package &package, const DistVersion &reqVersion, unsigned int triggerHash=0) const override final
	toPackage This method convert this class object to the package. For more info see Package class.
Public Member Functions inherited from QH::PKG::AbstractData
	~AbstractData () override
virtual unsigned short	cmd () const =0
	cmd - This is command of this object, (for generate cmd use macross QH_PACKAGE)
virtual QString	cmdString () const =0
	cmdString - This is command string of this object, (for generate cmd use macross QH_PACKAGE)
bool	isValid () const override
	isValid This method check current object to valid.
QString	toString () const override
	toString - Return a string implementation for this object.
template<class C, class... Args>
C *	create (Args &&... args) const
	create - This is factory method for create a new object.
void	fromPakcage (const Package &pkg)
	fromPakcage - This method initialize the current object from a package class object.
Public Member Functions inherited from QH::StreamBase
	StreamBase ()
virtual	~StreamBase ()
bool	fromBytes (const QByteArray &dataz)
	fromBytes This method provide initialization of object from byte array.
QByteArray	toBytes () const
	toBytes This method convert a current object to bytes array.
bool	fromBase64 (const QString &data)
	fromBase64 This method provide initialization of object from the base64 string.
bool	fromBase64 (const QByteArray &data)
	fromBase64 This method provide initialization of object from the base64 string.
QByteArray	toBase64 () const
	toBase64 This method convert a current object to the base64 string.
template<class T>
T &	copy (const StreamBase &right)
	copy This is base copy method for all StreamBase structures. Default implementation it is copy from byteArray.
template<class T>
bool	compare (const T &right)
	compare This method compare array signatures of this and right objects.

Additional Inherited Members
Static Public Member Functions inherited from QH::PKG::AbstractData
static unsigned int	command ()
	command This static method that return glaball code of this object.
static QString	commandText ()
	commandText This method return text of package command
Protected Member Functions inherited from QH::PKG::AbstractData
	AbstractData ()
	AbstractData - Base constructor of this object.
Protected Member Functions inherited from QH::StreamBase
virtual int	parsingVersion () const
	parsingVersion this method return parsing version of Qt. By Default is 0 (last available parsing). see https://doc.qt.io/qt-6/qdatastream.html#Version-enum
virtual unsigned int	typeId () const
	typeId This method return id of type.

Detailed Description

The MultiversionData class This class add support for multiple versions of ne command/package. If you need to add support multiple versions make your pakcage class children of the MultiversionData class.

Example:

class MyPackage: public MultiversionData {
    MyPackage():  QH::PKG::MultiversionData(
            {
                {0, // version 0
                    {
                        [this](QDataStream& stream) -> QDataStream&{ // from
                            stream >> v1;
                            return stream;
                        },
                        [this](QDataStream& stream) -> QDataStream&{ // to
                            stream << v1;

                            return stream;
                        }
                    }
                },
                {1, // version 1
                    {
                        [this](QDataStream& stream) -> QDataStream&{ // from
                            stream >> v1;
                            stream >> v2;

                            return stream;
                        },
                        [this](QDataStream& stream) -> QDataStream&{ // to
                            stream << v1;
                            stream << v2;
                            return stream;
                        }
                    }
                }
            }
            ) {};

Note: the default toBytes function of this class will be convert your class using latest version.

Definition at line 67 of file multiversiondata.h.

Constructor & Destructor Documentation

◆ MultiversionData()

QH::PKG::MultiversionData::MultiversionData ( const QMap< unsigned short, SerializationBox > & serializers )

MultiversionData main constructor.

Parameters

serializers this is map of the all supported versions.

Definition at line 18 of file multiversiondata.cpp.

Member Function Documentation

◆ fromStream()

QDataStream & QH::PKG::MultiversionData::fromStream ( QDataStream & stream )

finaloverridevirtual

fromStream This method should be read all bytes from the stream object and full the current object.

Note: The implementation of this method should be invoke a method of base class.

Parameters

stream This is Qt stream object.

Returns: Qt stream object.

Examle of base simple implementation:

QDataStream &ExampleClass::fromStream(QDataStream &stream) const {
    StreamBase::toStream(stream);
    stream >> exampleMember;
    return stream;
}

Implements QH::StreamBase.

Definition at line 27 of file multiversiondata.cpp.

◆ packageVersion()

const DistVersion & QH::PKG::MultiversionData::packageVersion ( ) const

packageVersion This method should be return number of the pacakge version.

Returns: pcakge version. by default return - 0 (any version)

Definition at line 113 of file multiversiondata.cpp.

◆ toBytesOf()

QByteArray QH::PKG::MultiversionData::toBytesOf ( const DistVersion & version ) const

toBytesOf This is overload method of StreamBase::toBytes for support multi versions of packages.

Parameters

version This is required version pacakge.

Returns: bytes array for package.

Note: This is just wrapper method for the AbstractData::toStream method.

Definition at line 64 of file multiversiondata.cpp.

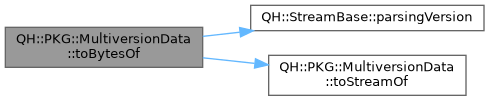

Here is the call graph for this function:

Here is the caller graph for this function:

◆ toPackage()

bool QH::PKG::MultiversionData::toPackage	(	Package &	package,
		const DistVersion &	reqVersion,
		unsigned int	triggerHash = 0 ) const

finaloverridevirtual

toPackage This method convert this class object to the package. For more info see Package class.

Parameters

package	This is return value of Package class.
reqVersion	This is required version. This method create package of the needed version.
triggerHash	This is hash of the package the current class is responding to.

Returns: True if convert to package finished successful.

Reimplemented from QH::PKG::AbstractData.

Definition at line 95 of file multiversiondata.cpp.

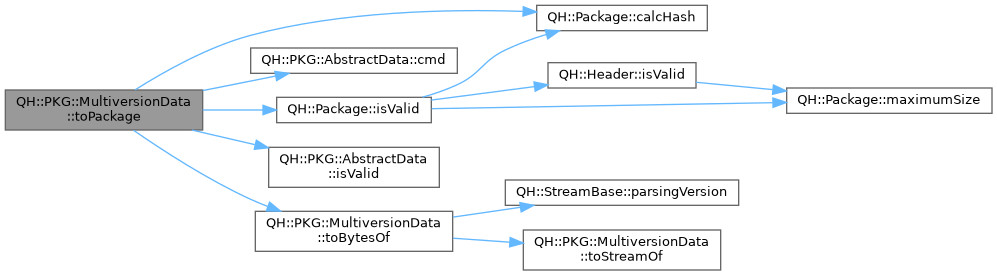

Here is the call graph for this function:

◆ toStream()

QDataStream & QH::PKG::MultiversionData::toStream ( QDataStream & stream ) const

finaloverridevirtual

fromStream This method should be write all members of the current object to the stream object.

Note: The implementation of this method should be invoke a method of base class.

Parameters

stream This is Qt stream object.

Returns: Qt stream object.

Examle of base simple implementation:

QDataStream &ExampleClass::toStream(QDataStream &stream) const {
    StreamBase::toStream(stream);
    stream << exampleMember;
    return stream;
}

Implements QH::StreamBase.

Definition at line 49 of file multiversiondata.cpp.

◆ toStreamOf()

QDataStream & QH::PKG::MultiversionData::toStreamOf	(	QDataStream &	stream,
		const DistVersion &	version ) const

toStreamOf This overrload of the base toStream method for support the multi version packages.

Parameters

stream	this is stream object.
version	this is custom version of parsing function.

Returns: stream object.

Definition at line 76 of file multiversiondata.cpp.

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/public/packages/multiversiondata.h
src/public/packages/multiversiondata.cpp
