The AbstractNode class - Abstract implementation of node. this implementation have a methods for send and receive data messages, and work with crypto method for create a security connections betwin nodes. AbstractNode - is thread save class. More...

#include <abstractnode.h>

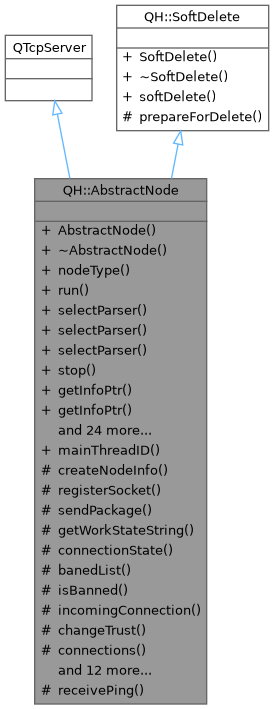

Inheritance diagram for QH::AbstractNode:

Collaboration diagram for QH::AbstractNode:

Public Types
enum	NodeType : int { Client = 0 , Node = 1 , Server = 2 }
	The NodeType enum contains types of the node. By default node contains only 3 types. More...

Signals
void	requestError (unsigned char code, QString msg)
	requestError This signal emited when client or node received from remoute server or node the BadRequest package.
void	sigNoLongerSupport (const QString &ApiKey, unsigned short version)
	sigNoLongerSupport is some as a APIVersionParser::sigNoLongerSupport. This signal just retronslate this signal as direct connection.

Public Member Functions
	AbstractNode (QObject *ptr=nullptr)
	AbstractNode - Base constructor of node.
	~AbstractNode () override

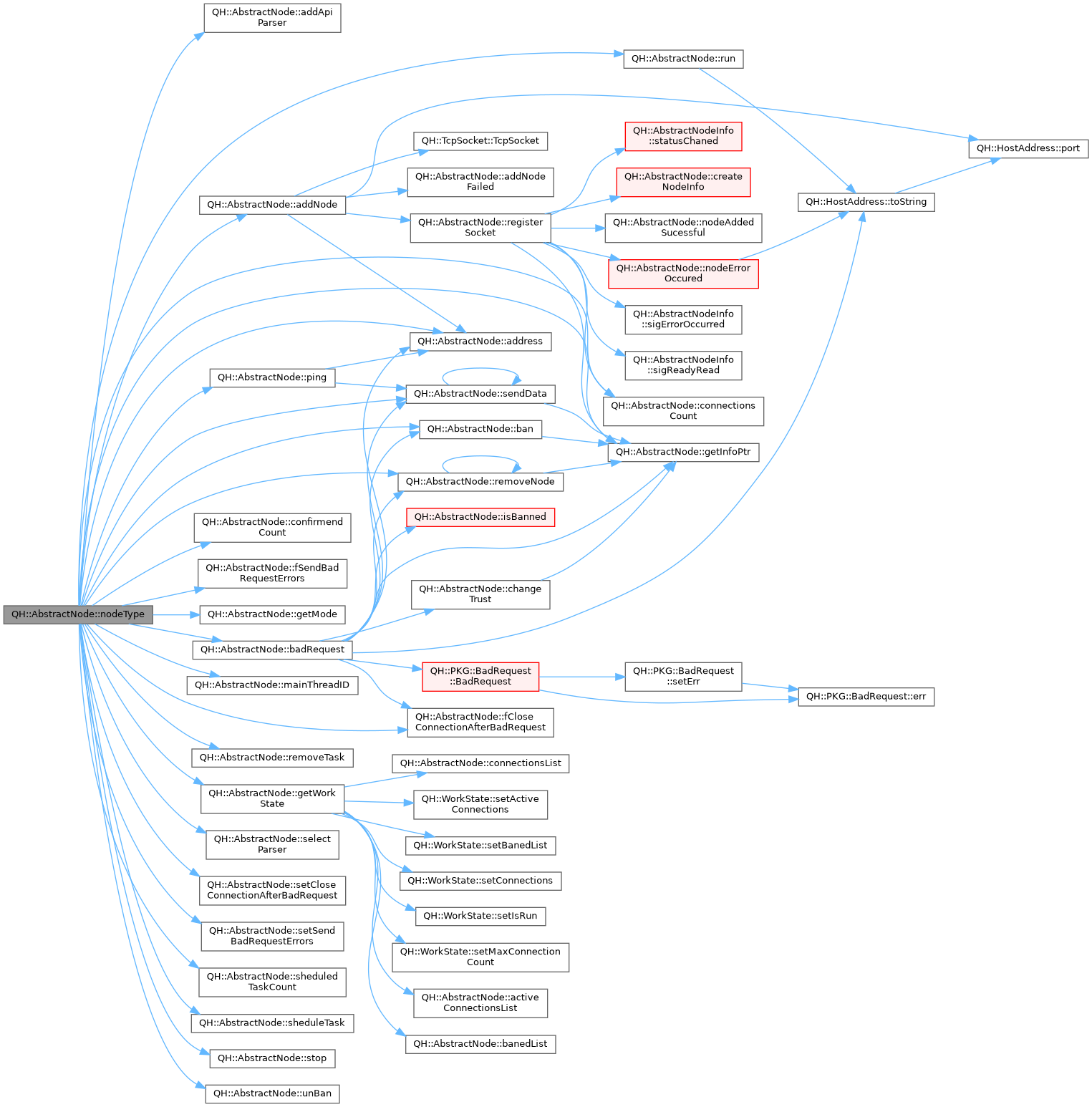

virtual NodeType	nodeType () const =0
	nodeType This method should be return type of the serve.
virtual bool	run (const QString &addres, unsigned short port)
	run This method implement deployment a network node (server) on selected address.
QSharedPointer< QH::iParser >	selectParser (unsigned short cmd, AbstractNodeInfo *sender) const
	selectParser This method select parser by command and sender.
QSharedPointer< QH::iParser >	selectParser (const QString &type, int version) const
	selectParser This method select parser by command and sender.
QSharedPointer< QH::iParser >	selectParser (const QString &type, AbstractNodeInfo *sender) const
	selectParser This method select parser by command and sender.

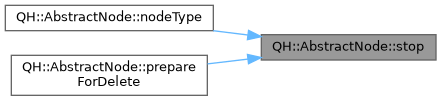

virtual void	stop ()
	stop - Stopped this node and close all network connections.

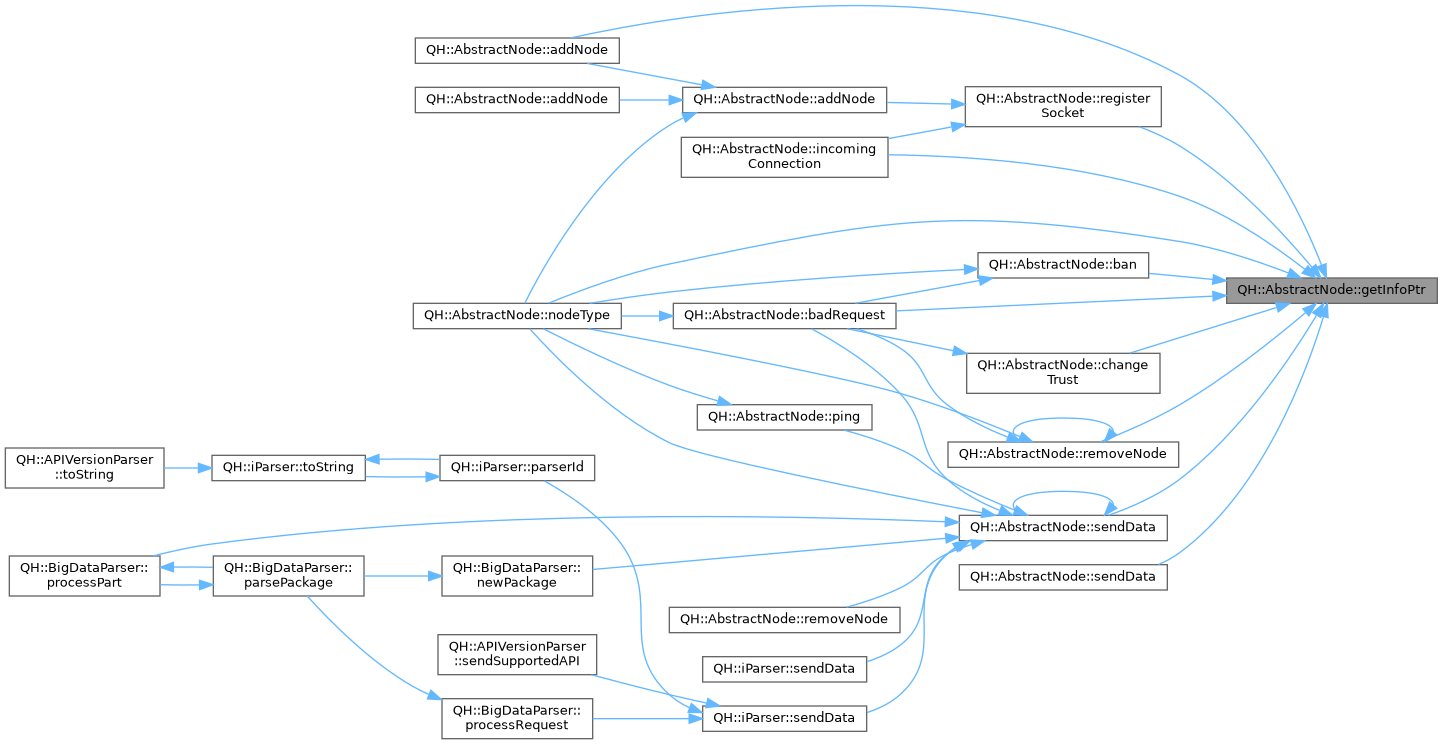

virtual AbstractNodeInfo *	getInfoPtr (const HostAddress &id)
	getInfoPtr - This method return information class pointer about netwok connection. If Connection with id not found then return nullptr.
virtual const AbstractNodeInfo *	getInfoPtr (const HostAddress &id) const
	getInfoPtr - This is some that getInfoPtr(const HostAddress &id) bod it is constant implementation.
virtual void	ban (const HostAddress &target)
	ban - This method set for target connection a trust property to 0 and target connection will been aborted.
virtual void	unBan (const HostAddress &target)
	unBan - This method set for target connection a trust property to 100.

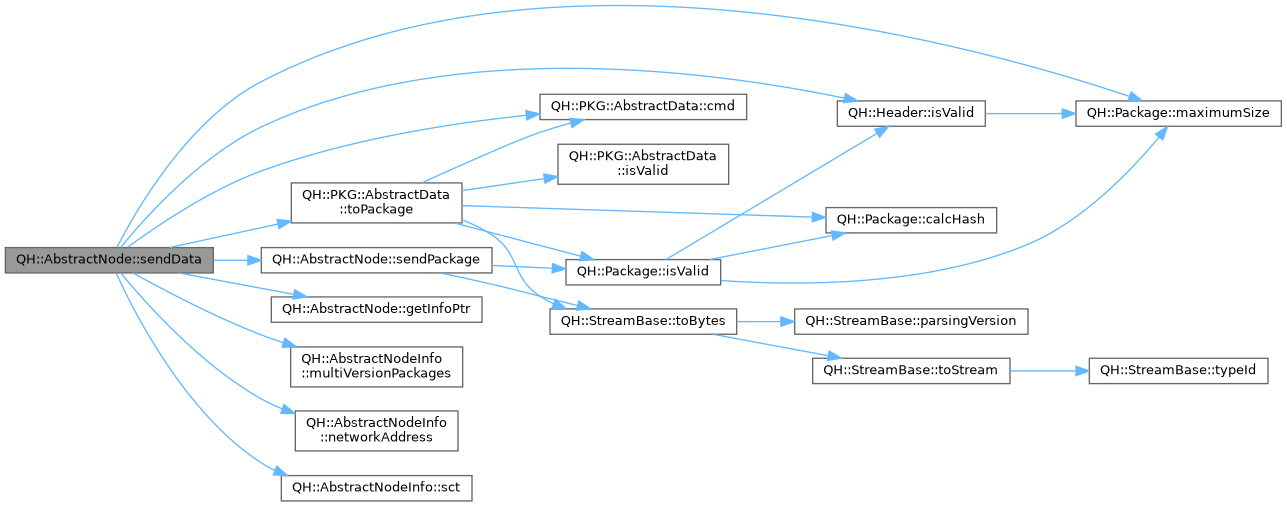

virtual unsigned int	sendData (const PKG::AbstractData resp, const HostAddress &address, const Header req=nullptr)
	sendData This method send data object another to node
virtual unsigned int	sendData (const PKG::AbstractData resp, const AbstractNodeInfo node, const Header *req=nullptr)
	sendData This method send data object another to node
bool	addNode (const HostAddress &address)
	addNode - Connect to node (server) with address.
bool	addNode (const HostAddress &address, const std::function< void(QH::AbstractNodeInfo *)> &action, NodeCoonectionStatus status=NodeCoonectionStatus::Connected)
	addNode This method add new peer connection to this node and execute the action when node status will be changed to the status.
bool	addNode (const QString &domain, unsigned short port, const std::function< void(QH::AbstractNodeInfo *)> &action=nullptr, NodeCoonectionStatus status=NodeCoonectionStatus::Connected)
	addNode This method add new peer connection to this node and execute the action when node status will be changed to the status.
bool	removeNode (const HostAddress &nodeAdderess)
	removeNode - Remove node and disconnected forom node (server).
bool	removeNode (AbstractNodeInfo *node)
	removeNode - Remove node and disconnected forom node (server).
HostAddress	address () const
	address - Thim method return own network address of current node (server).
SslMode	getMode () const
	getMode - This method return SSL mode of corrent node (server).

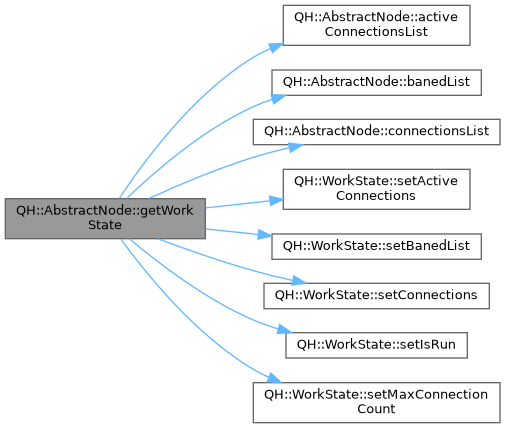

virtual WorkState	getWorkState () const
	getWorkState - This method collect general information about this server. For more information about returned data see getWorkState

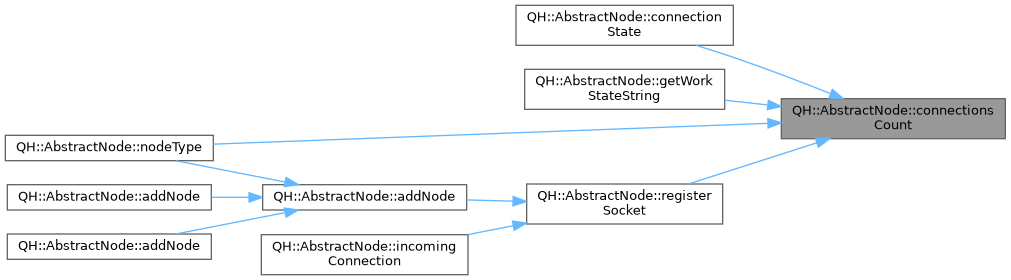

int	connectionsCount () const
	connectionsCount - Return count fo connections (connections with status connected)
int	confirmendCount () const
	connectionsCount - Return count of nodes with status confirmend.
bool	ping (const HostAddress &address)
	ping This method send ping package to address for testing connection.
bool	sheduleTask (const QSharedPointer< AbstractTask > &task)
	sheduleTask This method shedule execute task on this node.
void	removeTask (int taskId)
	removeTask This method remove task from sheduler.
int	sheduledTaskCount () const
	sheduledTaskCount This method return count of sheduled tasks.

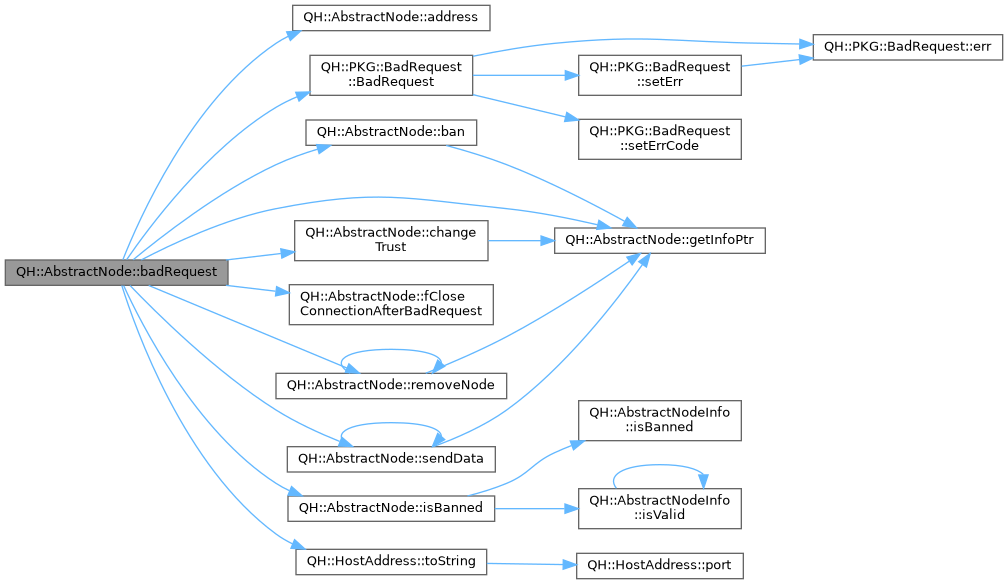

virtual void	badRequest (const HostAddress &address, const Header &req, const PKG::ErrorData &err, qint8 diff=REQUEST_ERROR)
	badRequest This method is send data about error of request.
bool	addApiParser (const QSharedPointer< iParser > &parser)
	addApiParser This method add new Api parser for this node.
bool	fSendBadRequestErrors () const
	fSendBadRequestErrors This property enable or disable sending feedback to connected node when them sent wrong packages.
void	setSendBadRequestErrors (bool value)
	setSendBadRequestErrors This method enable or disable the fSendBadRequestErrors property.
bool	fCloseConnectionAfterBadRequest () const
	fCloseConnectionAfterBadRequest This propery enable or disable droping connection after badRequests. By default it is true.
void	setCloseConnectionAfterBadRequest (bool value)
	setSendBadRequestErrors This method enable or disable the fcloseConnectionAfterBadRequest property.
Public Member Functions inherited from QH::SoftDelete
	SoftDelete ()
virtual	~SoftDelete ()
	~SoftDelete This destructor has bin crashed if the softDelete method not will be invoked before delete this object. IF you try delete this object on release distribution then you get error message only without invoked std::abort method.
void	softDelete ()
	softDelete This method remove this object and save all changes into database.

Static Public Member Functions
static QThread *	mainThreadID ()
	mainThreadID This method return the pointer to main thread

Protected Slots
virtual void	receivePing (const QSharedPointer< QH::PKG::Ping > &ping)
	receivePing This method invoked when node receive new ping object.

Protected Member Functions

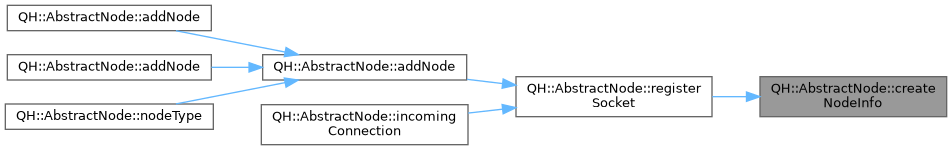

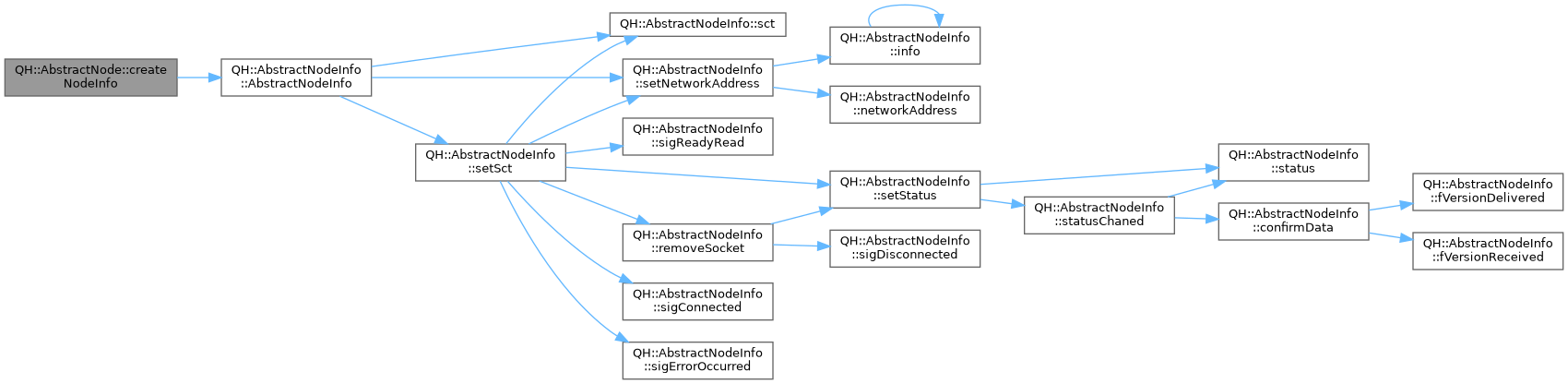

virtual AbstractNodeInfo *	createNodeInfo (QAbstractSocket socket, const HostAddress clientAddress=nullptr) const
	createNodeInfo This method create a nodeInfo object. override this method for create your own nodeInfo objects. for more in

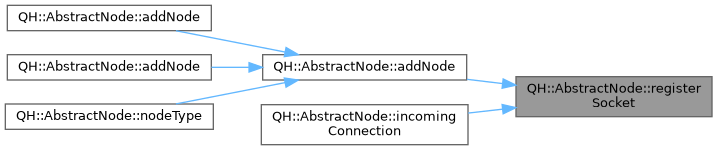

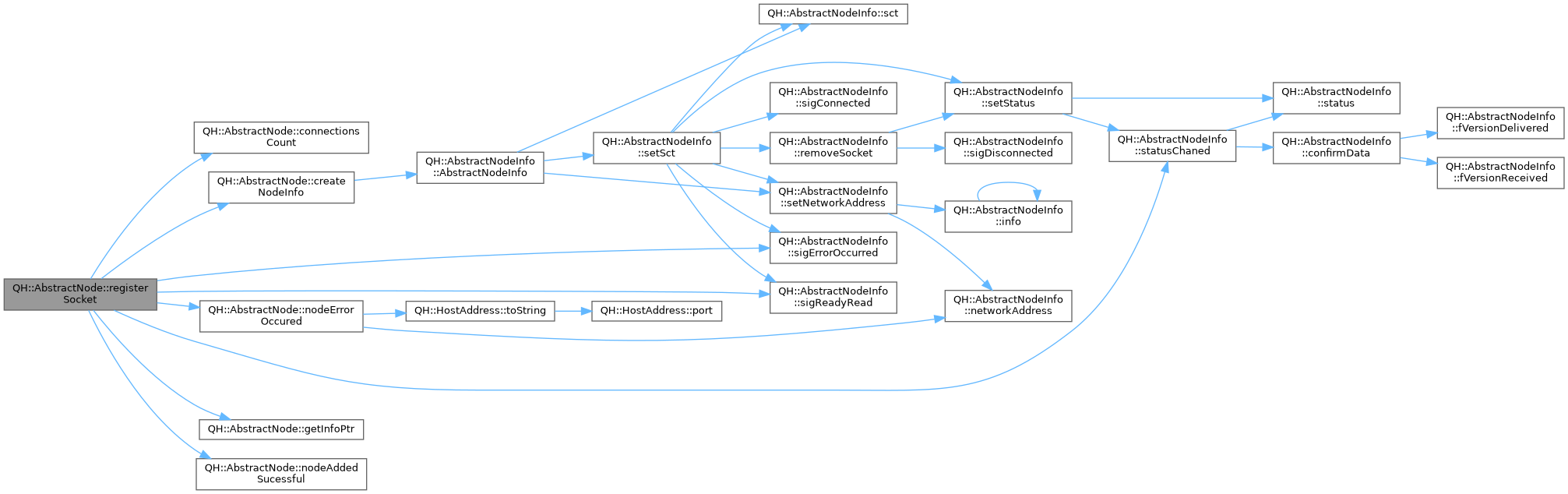

virtual bool	registerSocket (QAbstractSocket socket, const HostAddress address=nullptr)
	registerSocket This method registration new socket object.

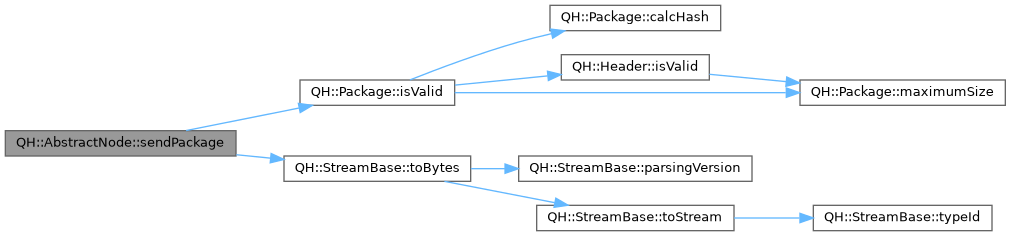

virtual bool	sendPackage (const Package &pkg, QAbstractSocket *target) const
	sendPackage This method prepare and send to target address a package.
virtual QString	getWorkStateString () const
	getWorkStateString This method generate string about work state of server.
virtual QString	connectionState () const
	connectionState This method return string value about the cocction state.
QList< HostAddress >	banedList () const
	banedList This method retrun list of banned clients of nodes.

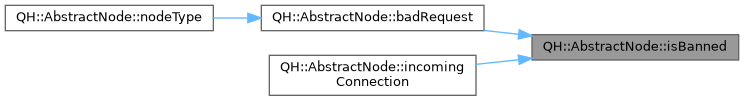

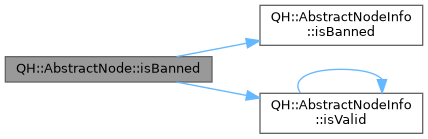

virtual bool	isBanned (const AbstractNodeInfo *socket) const
	isBanned This method checks if the node is banned.
void	incomingConnection (qintptr handle) override final
	incomingConnection This is ovverided method of QTCPServer.
virtual bool	changeTrust (const HostAddress &id, int diff)
	changeTrust This method change trust of connected node.
QHash< HostAddress, AbstractNodeInfo * >	connections () const
	connections - Return hash map of all connections of this node.
virtual void	nodeConfirmend (AbstractNodeInfo *node)
	nodeConfirmend This method invocked when the node status changed to "confirmend" default implementatio do nothing.
virtual void	nodeConnected (AbstractNodeInfo *node)
	nodeConnected This method invocked when the node status changed to "connected" default implementatio do nothing.
virtual void	nodeDisconnected (AbstractNodeInfo *node)
	nodeConnected This method invocked when the node status changed to "disconnected" default implementatio do nothing.
void	prepareForDelete () override
	prepareForDelete This method must be prepare object for delete. Override this for working main functions of this class. For more information see the SoftDelete class and SoftDelete::~SoftDelete distructor.
QSharedPointer< PKG::AbstractData >	prepareData (const Package &pkg, AbstractNodeInfo *sender) const
	prepareData This is private method for preparing package from the byteArray.
QList< HostAddress >	connectionsList () const
	connectionsList This method return list of all node connections
QList< HostAddress >	activeConnectionsList () const
	activeConnectionsList This method return list of actived nodes connections

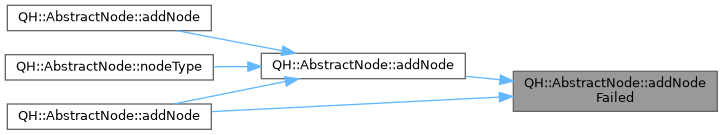

virtual void	addNodeFailed (AddNodeError error)
	addNodeFailed This method will be invoked when trying to add new node are failed. So override this method for handle this event.

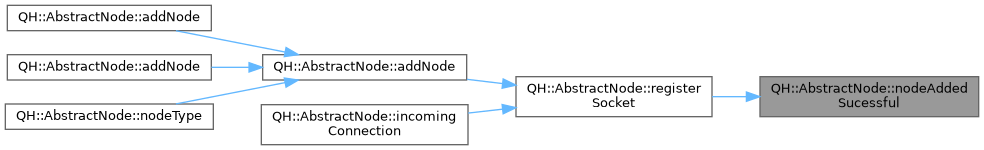

virtual void	nodeAddedSucessful (AbstractNodeInfo *node)
	nodeAddedSucessful This method will be invoked when new node added successful.
template<class ApiType, class ... Args>
QSharedPointer< ApiType >	addApiParserNative (Args &&... arg)
	addApiParserNative This is template metod that add sipport of new apiparser ApiType
template<class ApiType, class ... Args>
const QSharedPointer< iParser > &	addApiParser (Args &&... arg)
	addApiParser This is template metod that add sipport of new apiparser ApiType

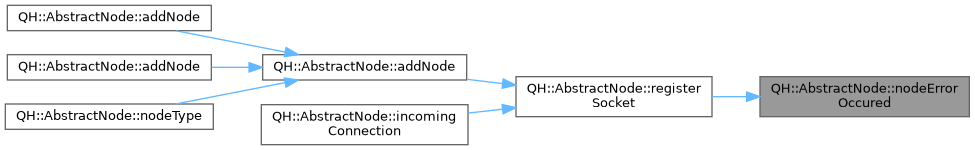

virtual void	nodeErrorOccured (QH::AbstractNodeInfo *nodeInfo, QAbstractSocket::SocketError errorCode, QString errorString)
	nodeErrorOccured This slot invoked when error ocured in the nodeInfo.

Friends
class	WebSocketController
class	SocketFactory
class	BigDataParser
class	BigDataParserOld
class	AbstractNodeParser
class	AbstractNodeParserOld

Detailed Description

The AbstractNode class - Abstract implementation of node. this implementation have a methods for send and receive data messages, and work with crypto method for create a security connections betwin nodes. AbstractNode - is thread save class.

Note: For correctly working this class you should be register all you dataParser types using the AbstractNode::addApiParser method.

See also: AbstractData; iParser; AbstractNode::addApiParser

Definition at line 100 of file abstractnode.h.

Member Enumeration Documentation

◆ NodeType

enum QH::AbstractNode::NodeType : int

The NodeType enum contains types of the node. By default node contains only 3 types.

Enumerator
Client	Node with this type is general clints nodes.
Node	Node with this ytpe is midle nodes that can works as a client and as servers.
Server	This is node can works only as a public server.

Definition at line 109 of file abstractnode.h.

Constructor & Destructor Documentation

◆ AbstractNode()

QH::AbstractNode::AbstractNode ( QObject * ptr = nullptr )

AbstractNode - Base constructor of node.

Parameters

ptr	- Pointrt to parent Qt object, the AbstractNode class is Q_OBJECT.

Note: For correctly working this class you should be register all you data types using the AbstractNode::registerPackageType method.

Definition at line 52 of file abstractnode.cpp.

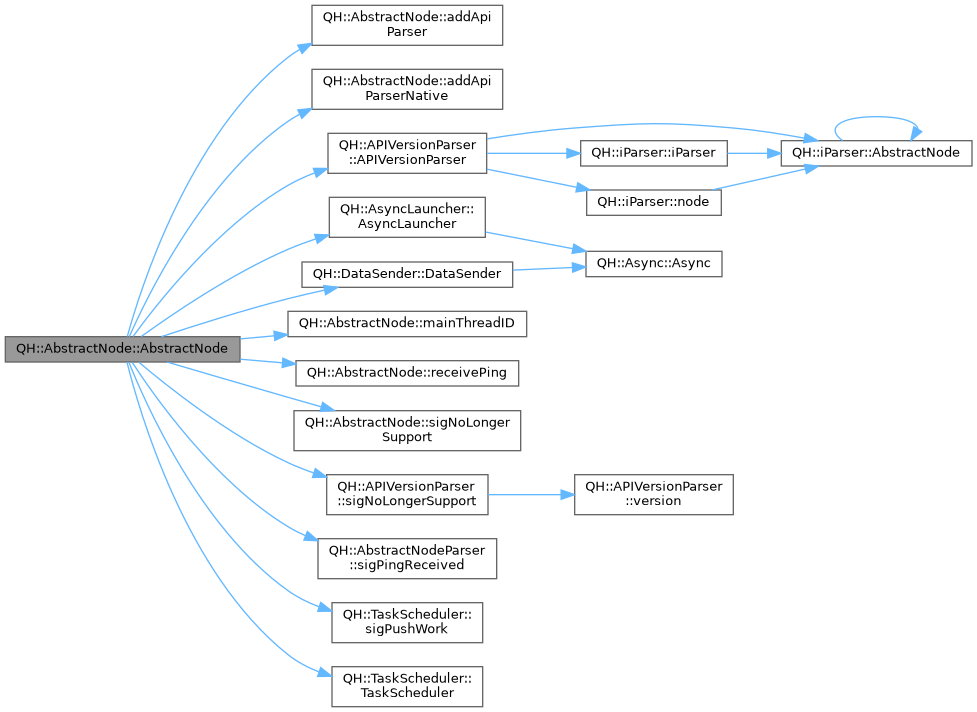

Here is the call graph for this function:

◆ ~AbstractNode()

QH::AbstractNode::~AbstractNode ( )

override

Definition at line 85 of file abstractnode.cpp.

Member Function Documentation

◆ activeConnectionsList()

QList< HostAddress > QH::AbstractNode::activeConnectionsList ( ) const

protected

activeConnectionsList This method return list of actived nodes connections

Returns: list of actived nodes connections.

Warning: do not use this method for validation is connected.

Definition at line 993 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ addApiParser() [1/2]

template<class ApiType, class ... Args>

const QSharedPointer< iParser > & QH::AbstractNode::addApiParser ( Args &&... arg )

inlineprotected

addApiParser This is template metod that add sipport of new apiparser ApiType

Template Parameters

ApiType	This is type of new apiParser that will be added to the main parser.
Args	This is argumets that will forward to the Parser constructor.

Returns: shared pointer to the iParser

Definition at line 644 of file abstractnode.h.

◆ addApiParser() [2/2]

bool QH::AbstractNode::addApiParser ( const QSharedPointer< iParser > & parser )

addApiParser This method add new Api parser for this node.

Parameters

parserObject This is bew api parser.

Returns: added parser.

Definition at line 1032 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ addApiParserNative()

template<class ApiType, class ... Args>

QSharedPointer< ApiType > QH::AbstractNode::addApiParserNative ( Args &&... arg )

inlineprotected

addApiParserNative This is template metod that add sipport of new apiparser ApiType

Template Parameters

ApiType	This is type of new apiParser that will be added to the main parser.
Args	This is argumets that will forward to the Parser constructor.

Returns: shared pointer to the ApiType

Definition at line 633 of file abstractnode.h.

Here is the caller graph for this function:

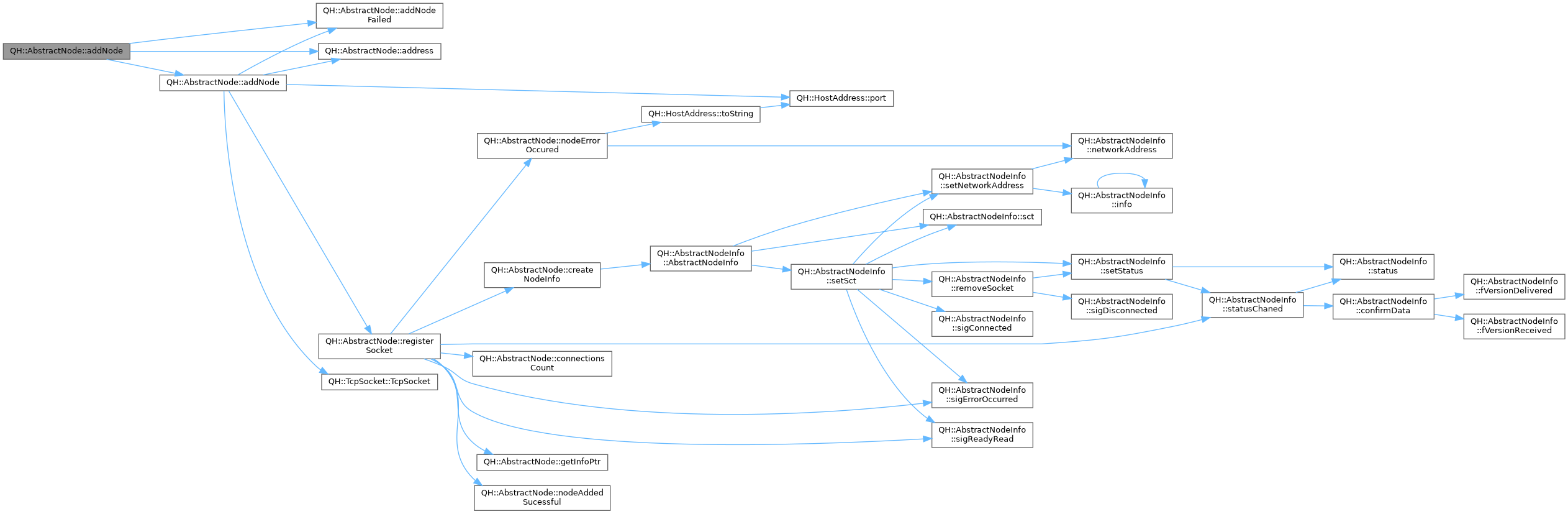

◆ addNode() [1/3]

bool QH::AbstractNode::addNode ( const HostAddress & address )

addNode - Connect to node (server) with address.

Parameters

address - This is Network address of node (server).

Returns: true if the node aaded successful

See also: AbstractNode::nodeAddedSucessful; AbstractNode::addNodeFailed

Definition at line 221 of file abstractnode.cpp.

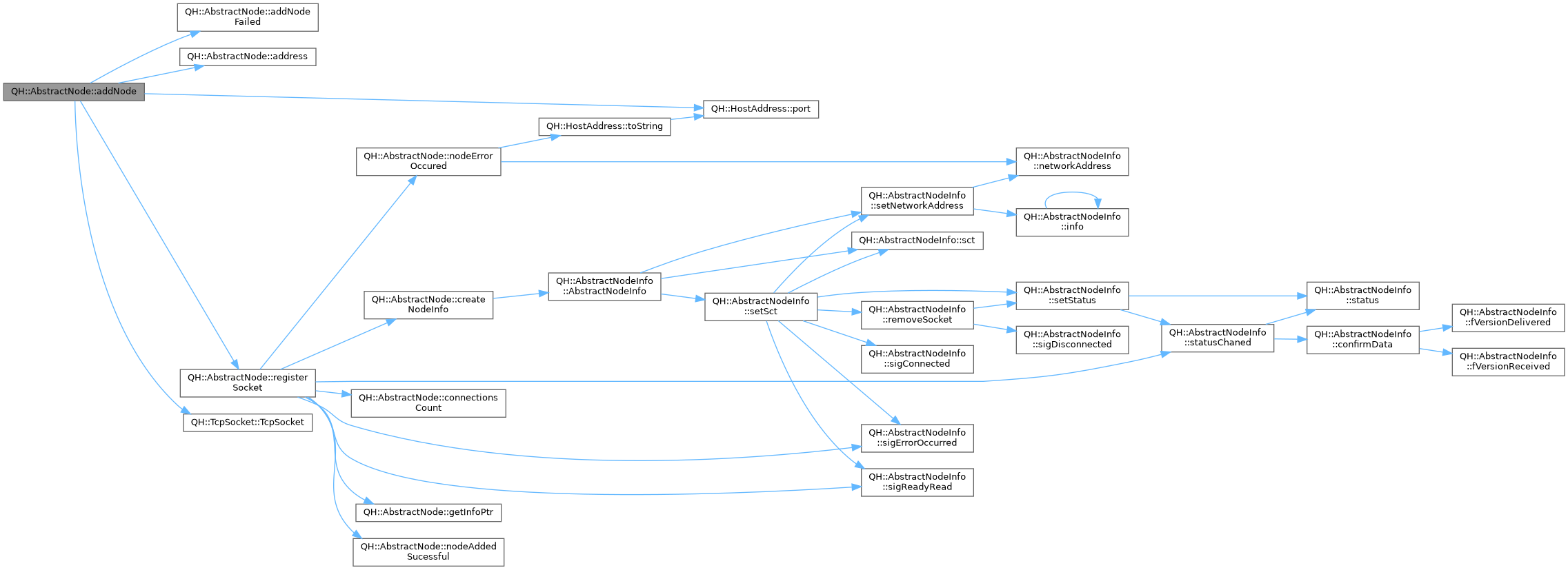

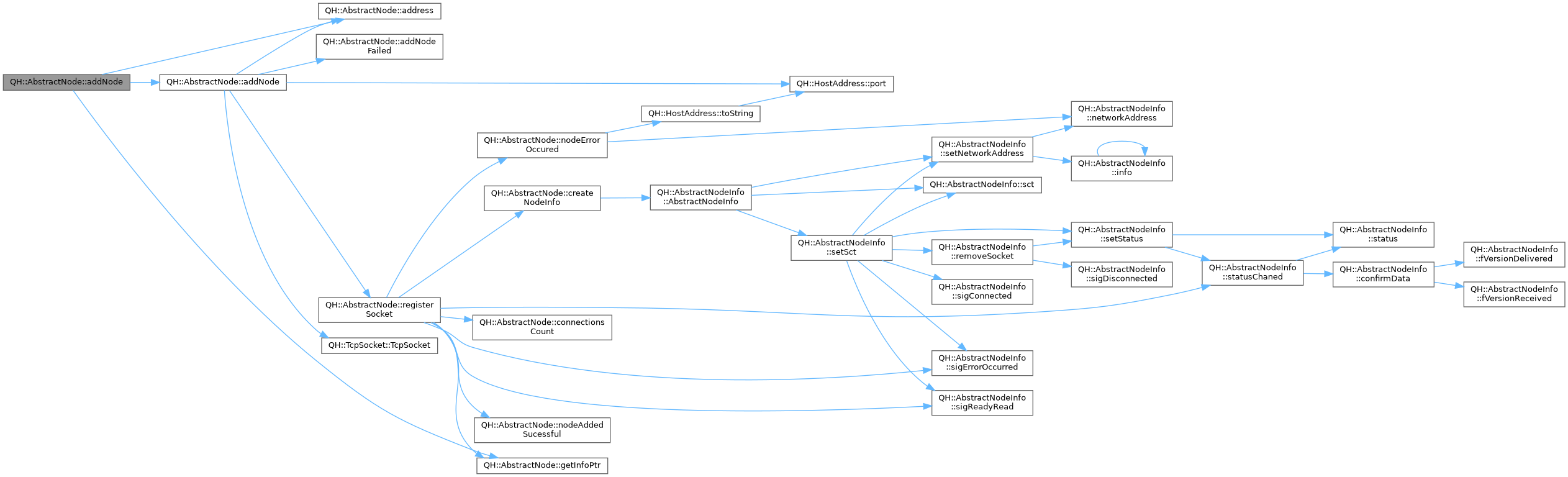

Here is the call graph for this function:

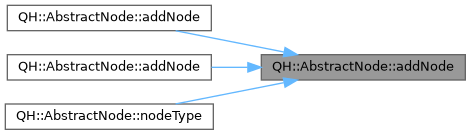

Here is the caller graph for this function:

◆ addNode() [2/3]

bool QH::AbstractNode::addNode	(	const HostAddress &	address,
		const std::function< void(QH::AbstractNodeInfo *)> &	action,
		NodeCoonectionStatus	status = NodeCoonectionStatus::Connected )

addNode This method add new peer connection to this node and execute the action when node status will be changed to the status.

Parameters

address	This is address of peer node.
action	This is action that will be executed when status will changed to required status.
status	This is required status.

Returns: true if node added successful.

Note: The Action do not executed when node alredy connected.; If you override the nodeConfirmend or the nodeConnected method then you must be invoke parent implementation else action do not executed.

See also: AbstractNode::nodeAddedSucessful; AbstractNode::addNodeFailed

Definition at line 250 of file abstractnode.cpp.

Here is the call graph for this function:

◆ addNode() [3/3]

bool QH::AbstractNode::addNode	(	const QString &	domain,
		unsigned short	port,
		const std::function< void(QH::AbstractNodeInfo *)> &	action = nullptr,
		NodeCoonectionStatus	status = NodeCoonectionStatus::Connected )

addNode This method add new peer connection to this node and execute the action when node status will be changed to the status.

Parameters

domain	- This is domain address of node (server).
port	- This is target port of node (server).
action	This is action that will be executed when status will changed to required status. You can ignore this argument for disable actions after connect.
status	This is required status. You can ignore this argument. By default it is Connected state

Returns: true if node added successful.

Example of use:

Note: The Action do not executed when node alredy connected.; If you override the nodeConfirmend or the nodeConnected method then you must be invoke parent implementation else action do not executed.

See also: AbstractNode::nodeAddedSucessful; AbstractNode::addNodeFailed

Definition at line 264 of file abstractnode.cpp.

Here is the call graph for this function:

◆ addNodeFailed()

void QH::AbstractNode::addNodeFailed ( AddNodeError error )

protectedvirtual

addNodeFailed This method will be invoked when trying to add new node are failed. So override this method for handle this event.

Parameters

error This is error code that occured after invoke of the AbstractNode::addNode method

See also: AbstractNode::addNode; AbstractNode::nodeAddedSucessful

Definition at line 1007 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ address()

HostAddress QH::AbstractNode::address ( ) const

address - Thim method return own network address of current node (server).

Returns: The current network adderss.

Definition at line 334 of file abstractnode.cpp.

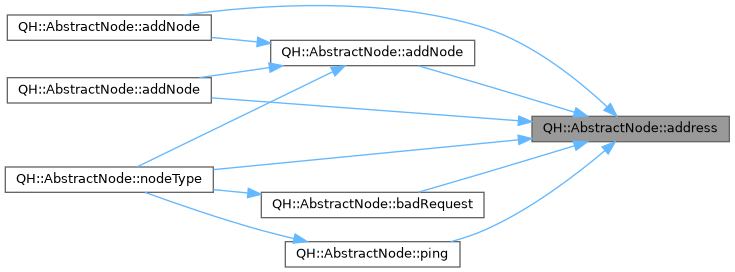

Here is the caller graph for this function:

◆ badRequest()

void QH::AbstractNode::badRequest	(	const HostAddress &	address,
		const Header &	req,
		const PKG::ErrorData &	err,
		qint8	diff = REQUEST_ERROR )

virtual

badRequest This method is send data about error of request.

Parameters

address	This is addrees of receiver.
req	This is header of incomming request.
err	This is message and code of error. For more information see the ErrorData struct.
diff	This is difference of current trust (currenTrus += diff). By default diff equals REQUEST_ERROR

Definition at line 653 of file abstractnode.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ban()

void QH::AbstractNode::ban ( const HostAddress & target )

virtual

ban - This method set for target connection a trust property to 0 and target connection will been aborted.

Parameters

target - It is network address of target connection.

Definition at line 204 of file abstractnode.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ banedList()

QList< HostAddress > QH::AbstractNode::banedList ( ) const

protected

banedList This method retrun list of banned clients of nodes.

Returns: list of baned nodes.

Definition at line 715 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ changeTrust()

bool QH::AbstractNode::changeTrust	(	const HostAddress &	id,
		int	diff )

protectedvirtual

changeTrust This method change trust of connected node.

Parameters

id	This is id of select node.
diff	This is difference of current trust (currenTrus += diff).

Returns: true if node trust is changed successful.

Definition at line 808 of file abstractnode.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ confirmendCount()

int QH::AbstractNode::confirmendCount ( ) const

connectionsCount - Return count of nodes with status confirmend.

Returns: return confirmend connections of this node (server).

Definition at line 742 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ connections()

QHash< HostAddress, AbstractNodeInfo * > QH::AbstractNode::connections ( ) const

protected

connections - Return hash map of all connections of this node.

Returns: return map of connections.

Definition at line 1132 of file abstractnode.cpp.

◆ connectionsCount()

int QH::AbstractNode::connectionsCount ( ) const

connectionsCount - Return count fo connections (connections with status connected)

Returns: Count valid connections.

Definition at line 729 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ connectionsList()

QList< HostAddress > QH::AbstractNode::connectionsList ( ) const

protected

connectionsList This method return list of all node connections

Returns: list of node connections.

Warning: do not use this method for validation is connected.

Definition at line 987 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ connectionState()

QString QH::AbstractNode::connectionState ( ) const

protectedvirtual

connectionState This method return string value about the cocction state.

Returns: string with count users state.

Definition at line 711 of file abstractnode.cpp.

Here is the call graph for this function:

◆ createNodeInfo()

AbstractNodeInfo * QH::AbstractNode::createNodeInfo	(	QAbstractSocket *	socket,
		const HostAddress *	clientAddress = nullptr ) const

protectedvirtual

createNodeInfo This method create a nodeInfo object. override this method for create your own nodeInfo objects. for more in

Parameters

socket	This is socket of network address.
clientAddress	This parameter need to set when the socket du not contains a address or invalid.

Returns: return pointer to info object.

Definition at line 498 of file abstractnode.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fCloseConnectionAfterBadRequest()

bool QH::AbstractNode::fCloseConnectionAfterBadRequest ( ) const

fCloseConnectionAfterBadRequest This propery enable or disable droping connection after badRequests. By default it is true.

Returns: true if the clossing connection is enabled and false if disabled.

Definition at line 477 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ fSendBadRequestErrors()

bool QH::AbstractNode::fSendBadRequestErrors ( ) const

fSendBadRequestErrors This property enable or disable sending feedback to connected node when them sent wrong packages.

Returns: true if the sending feedbacks is enabled and false if disabled.

Definition at line 485 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ getInfoPtr() [1/2]

AbstractNodeInfo * QH::AbstractNode::getInfoPtr ( const HostAddress & id )

virtual

getInfoPtr - This method return information class pointer about netwok connection. If Connection with id not found then return nullptr.

Parameters

id	- It is network address of requested node.

Returns: The pointer of information about node. if address not found return nullptr.

Definition at line 182 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ getInfoPtr() [2/2]

const AbstractNodeInfo * QH::AbstractNode::getInfoPtr ( const HostAddress & id ) const

virtual

getInfoPtr - This is some that getInfoPtr(const HostAddress &id) bod it is constant implementation.

Parameters

id	- It is network address of requested node.

Returns: The pointer of information about node. if address not found return nullptr.

Definition at line 194 of file abstractnode.cpp.

◆ getMode()

SslMode QH::AbstractNode::getMode ( ) const

getMode - This method return SSL mode of corrent node (server).

Returns: current mode for more information see SslMode.

Definition at line 1128 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ getWorkState()

WorkState QH::AbstractNode::getWorkState ( ) const

virtual

getWorkState - This method collect general information about this server. For more information about returned data see getWorkState

Returns: state value for more information see WorkState class.

Definition at line 686 of file abstractnode.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getWorkStateString()

QString QH::AbstractNode::getWorkStateString ( ) const

protectedvirtual

getWorkStateString This method generate string about work state of server.

Returns: string of work state.

Definition at line 699 of file abstractnode.cpp.

Here is the call graph for this function:

◆ incomingConnection()

void QH::AbstractNode::incomingConnection ( qintptr handle )

finaloverrideprotected

incomingConnection This is ovverided method of QTCPServer.

Parameters

handle This is socket handle.

Definition at line 769 of file abstractnode.cpp.

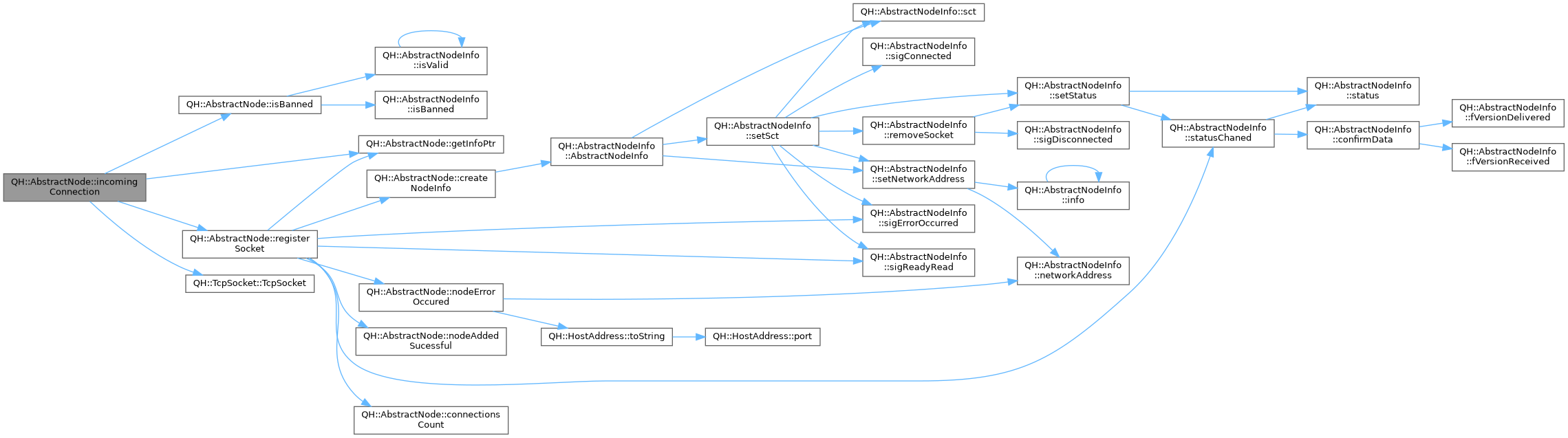

Here is the call graph for this function:

◆ isBanned()

bool QH::AbstractNode::isBanned ( const AbstractNodeInfo * socket ) const

protectedvirtual

isBanned This method checks if the node is banned.

Parameters

socket This is node info object for validation.

Returns: true if node is banned.

Definition at line 761 of file abstractnode.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mainThreadID()

QThread * QH::AbstractNode::mainThreadID ( )

static

mainThreadID This method return the pointer to main thread

Returns: pointer to main thread

Definition at line 1247 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ nodeAddedSucessful()

void QH::AbstractNode::nodeAddedSucessful ( AbstractNodeInfo * node )

protectedvirtual

nodeAddedSucessful This method will be invoked when new node added successful.

Parameters

node	This is pointer to added node.

Note: do not try remove the node pointer. This pointer will be removed automaticaly.

See also: AbstractNode::addNode; AbstractNode::addNodeFailed

Definition at line 1028 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ nodeConfirmend()

void QH::AbstractNode::nodeConfirmend ( AbstractNodeInfo * node )

protectedvirtual

nodeConfirmend This method invocked when the node status changed to "confirmend" default implementatio do nothing.

Parameters

node	This is address of changed node.

Definition at line 1176 of file abstractnode.cpp.

Here is the call graph for this function:

◆ nodeConnected()

void QH::AbstractNode::nodeConnected ( AbstractNodeInfo * node )

protectedvirtual

nodeConnected This method invocked when the node status changed to "connected" default implementatio do nothing.

Parameters

node	This is address of changed node.

Definition at line 1184 of file abstractnode.cpp.

Here is the call graph for this function:

◆ nodeDisconnected()

void QH::AbstractNode::nodeDisconnected ( AbstractNodeInfo * node )

protectedvirtual

nodeConnected This method invocked when the node status changed to "disconnected" default implementatio do nothing.

Parameters

node	This is address of changed node.

Definition at line 1195 of file abstractnode.cpp.

◆ nodeErrorOccured()

void QH::AbstractNode::nodeErrorOccured	(	QH::AbstractNodeInfo *	nodeInfo,
		QAbstractSocket::SocketError	errorCode,
		QString	errorString )

protectedvirtual

nodeErrorOccured This slot invoked when error ocured in the nodeInfo.

Parameters

nodeInfo	This is pinter to modeInfoObject.
errorCode	This is error code.
errorString	This is string value of the error.

Note: default implementation do nothing. Override this method if you want to handle nodes network errors.

Definition at line 1199 of file abstractnode.cpp.

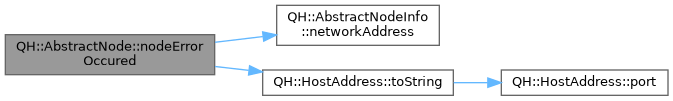

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nodeType()

virtual NodeType QH::AbstractNode::nodeType ( ) const

pure virtual

nodeType This method should be return type of the serve.

Returns: node type q qq

Here is the call graph for this function:

◆ ping()

bool QH::AbstractNode::ping ( const HostAddress & address )

ping This method send ping package to address for testing connection.

Parameters

address This is address of target node (server).

Returns: true if ping sendet successful.

Definition at line 755 of file abstractnode.cpp.

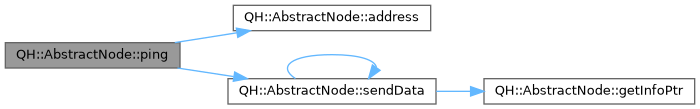

Here is the call graph for this function:

Here is the caller graph for this function:

◆ prepareData()

QSharedPointer< AbstractData > QH::AbstractNode::prepareData	(	const Package &	pkg,
		AbstractNodeInfo *	sender ) const

protected

prepareData This is private method for preparing package from the byteArray.

Parameters

pkg	This is a raw package value.
sender	This is sender of the pkg.

Returns: pointer into prepared data.

Warning: The return value do not clear automatically.

Definition at line 971 of file abstractnode.cpp.

◆ prepareForDelete()

void QH::AbstractNode::prepareForDelete ( )

overrideprotectedvirtual

prepareForDelete This method must be prepare object for delete. Override this for working main functions of this class. For more information see the SoftDelete class and SoftDelete::~SoftDelete distructor.

Implements QH::SoftDelete.

Definition at line 1136 of file abstractnode.cpp.

Here is the call graph for this function:

◆ receivePing

void QH::AbstractNode::receivePing ( const QSharedPointer< QH::PKG::Ping > & ping )

protectedvirtualslot

receivePing This method invoked when node receive new ping object.

Parameters

ping	This is ping object.

Definition at line 1040 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ registerSocket()

bool QH::AbstractNode::registerSocket	(	QAbstractSocket *	socket,
		const HostAddress *	address = nullptr )

protectedvirtual

registerSocket This method registration new socket object.

Parameters

socket	This is incomming socket pointer.
address	This is host address of socket. By default is nullptr. Set this value for nodes created on this host.

Returns: return true if the scoeket has been registered successful.

Definition at line 503 of file abstractnode.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ removeNode() [1/2]

bool QH::AbstractNode::removeNode ( AbstractNodeInfo * node )

removeNode - Remove node and disconnected forom node (server).

Parameters

node	- This is removed node (server).

Returns: true if the node removed successful. If the nde with nodeAdderess is not exits return false.

Definition at line 313 of file abstractnode.cpp.

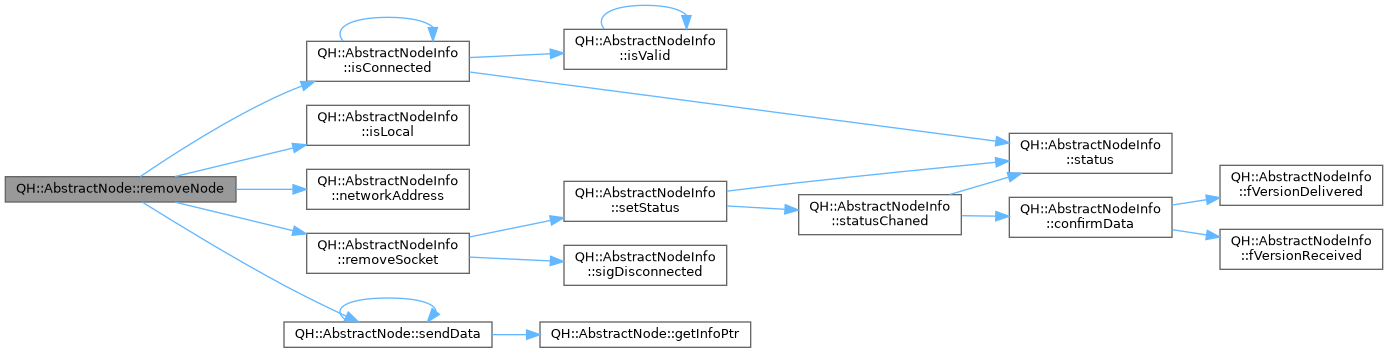

Here is the call graph for this function:

◆ removeNode() [2/2]

bool QH::AbstractNode::removeNode ( const HostAddress & nodeAdderess )

removeNode - Remove node and disconnected forom node (server).

Parameters

nodeAdderess - This is network adddress of removed node (server).

Returns: true if the node removed successful. If the nde with nodeAdderess is not exits return false.

Definition at line 304 of file abstractnode.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ removeTask()

void QH::AbstractNode::removeTask ( int taskId )

removeTask This method remove task from sheduler.

Parameters

taskId This is task id that will be removed.

See also: AbstractNode::sheduleTask; AbstractNode::sheduledTaskCount

Definition at line 1046 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ requestError

void QH::AbstractNode::requestError	(	unsigned char	code,
		QString	msg )

signal

requestError This signal emited when client or node received from remoute server or node the BadRequest package.

Parameters

code	This is code of error.
msg	- received text of remoute node (server).

◆ run()

bool QH::AbstractNode::run	(	const QString &	addres,
		unsigned short	port )

virtual

run This method implement deployment a network node (server) on selected address.

Parameters

addres	This is network address of work node or server. If address is empty then server weel be listen all addreses of all interfaces else listen only selected address.
port	This is port of deployment node (server)

Returns: Result of deployment node (sever). (True if deploy finished successful else false).

Definition at line 99 of file abstractnode.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ selectParser() [1/3]

QSharedPointer< iParser > QH::AbstractNode::selectParser	(	const QString &	type,
		AbstractNodeInfo *	sender ) const

selectParser This method select parser by command and sender.

Parameters

type	this is parser type.
sender	this is node that sent this command.

Returns: parser for the cmd command

Definition at line 127 of file abstractnode.cpp.

◆ selectParser() [2/3]

QSharedPointer< iParser > QH::AbstractNode::selectParser	(	const QString &	type,
		int	version ) const

selectParser This method select parser by command and sender.

Parameters

type	this is parser type.
version	this is node that sent this command.

Returns: parser for the cmd command

Definition at line 132 of file abstractnode.cpp.

◆ selectParser() [3/3]

QSharedPointer< iParser > QH::AbstractNode::selectParser	(	unsigned short	cmd,
		AbstractNodeInfo *	sender ) const

selectParser This method select parser by command and sender.

Parameters

cmd	this is command that need to parse.
sender	this is node that sent this command.

Returns: parser for the cmd command

Definition at line 122 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ sendData() [1/2]

unsigned int QH::AbstractNode::sendData	(	const PKG::AbstractData *	resp,
		const AbstractNodeInfo *	node,
		const Header *	req = nullptr )

virtual

sendData This method send data object another to node

Parameters

resp	This is pointer to sendet object.
address	This is target addres for sending.
req	This is header of request.

Returns: hash of the sendet package. If function is failed then return 0.

Definition at line 607 of file abstractnode.cpp.

Here is the call graph for this function:

◆ sendData() [2/2]

unsigned int QH::AbstractNode::sendData	(	const PKG::AbstractData *	resp,
		const HostAddress &	address,
		const Header *	req = nullptr )

virtual

sendData This method send data object another to node

Parameters

resp	This is pointer to sendet object.
address	This is target addres for sending.
req	This is header of request.

Returns: hash of the sendet package. If function is failed then return 0.

Definition at line 601 of file abstractnode.cpp.

Here is the call graph for this function:

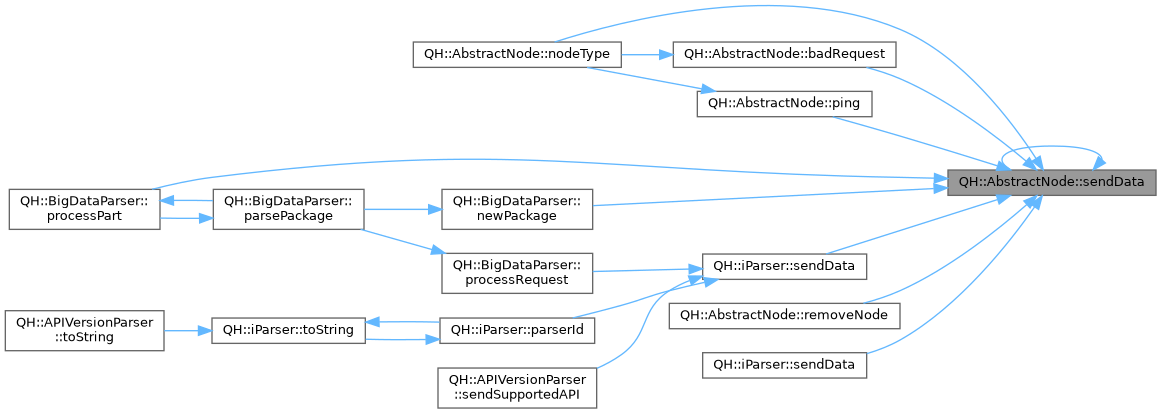

Here is the caller graph for this function:

◆ sendPackage()

bool QH::AbstractNode::sendPackage	(	const Package &	pkg,
		QAbstractSocket *	target ) const

protectedvirtual

sendPackage This method prepare and send to target address a package.

Parameters

pkg	This is sendet pakcage to target node.
target	This is target node.

Returns: return true if The package is sendet succesfull.

Note: All packages sendets on the sender threaed. But thread of the node is wait for sends result. This is done that allthe data that is sent when node are dissconected come without fail.

Definition at line 582 of file abstractnode.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setCloseConnectionAfterBadRequest()

void QH::AbstractNode::setCloseConnectionAfterBadRequest ( bool value )

setSendBadRequestErrors This method enable or disable the fcloseConnectionAfterBadRequest property.

Parameters

value This is new value of the fcloseConnectionAfterBadRequest property.

Definition at line 481 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ setSendBadRequestErrors()

void QH::AbstractNode::setSendBadRequestErrors ( bool value )

setSendBadRequestErrors This method enable or disable the fSendBadRequestErrors property.

Parameters

value This is new value of the sendBadRequestErrors property.

Definition at line 489 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ sheduledTaskCount()

int QH::AbstractNode::sheduledTaskCount ( ) const

sheduledTaskCount This method return count of sheduled tasks.

Returns: count of sheduled tasks.

See also: AbstractNode::sheduleTask; AbstractNode::removeTask

Definition at line 1050 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ sheduleTask()

bool QH::AbstractNode::sheduleTask ( const QSharedPointer< AbstractTask > & task )

sheduleTask This method shedule execute task on this node.

Parameters

task	This is task that will be sheduled.

Returns: true if task added successfull else flase

See also: AbstractNode::removeTask; AbstractNode::sheduledTaskCount

Definition at line 1042 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ sigNoLongerSupport

void QH::AbstractNode::sigNoLongerSupport	(	const QString &	ApiKey,
		unsigned short	version )

signal

sigNoLongerSupport is some as a APIVersionParser::sigNoLongerSupport. This signal just retronslate this signal as direct connection.

Parameters

ApiKey	see the APIVersionParser::sigNoLongerSupport description
version	see the APIVersionParser::sigNoLongerSupport description

See also: APIVersionParser::sigNoLongerSupport

Here is the caller graph for this function:

◆ stop()

void QH::AbstractNode::stop ( )

virtual

stop - Stopped this node and close all network connections.

Definition at line 136 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ unBan()

void QH::AbstractNode::unBan ( const HostAddress & target )

virtual

unBan - This method set for target connection a trust property to 100.

Parameters

target - It is network address of target connection.

Definition at line 211 of file abstractnode.cpp.

Here is the caller graph for this function:

◆ AbstractNodeParser

friend class AbstractNodeParser

friend

Definition at line 814 of file abstractnode.h.

◆ AbstractNodeParserOld

friend class AbstractNodeParserOld

friend

Definition at line 815 of file abstractnode.h.

◆ BigDataParser

friend class BigDataParser

friend

Definition at line 812 of file abstractnode.h.

◆ BigDataParserOld

friend class BigDataParserOld

friend

Definition at line 813 of file abstractnode.h.

◆ SocketFactory

friend class SocketFactory

friend

Definition at line 811 of file abstractnode.h.

◆ WebSocketController

friend class WebSocketController

friend

Definition at line 810 of file abstractnode.h.

The documentation for this class was generated from the following files:

src/public/abstractnode.h
src/public/abstractnode.cpp

Public Types

Signals

Public Member Functions

Static Public Member Functions

Protected Slots

Protected Member Functions

Friends

Detailed Description

Member Enumeration Documentation

◆ NodeType

Constructor & Destructor Documentation

◆ AbstractNode()

◆ ~AbstractNode()

Member Function Documentation

◆ activeConnectionsList()

◆ addApiParser() [1/2]

◆ addApiParser() [2/2]

◆ addApiParserNative()

◆ addNode() [1/3]

◆ addNode() [2/3]

◆ addNode() [3/3]

◆ addNodeFailed()

◆ address()

◆ badRequest()

◆ ban()

◆ banedList()

◆ changeTrust()

◆ confirmendCount()

◆ connections()

◆ connectionsCount()

◆ connectionsList()

◆ connectionState()

◆ createNodeInfo()

◆ fCloseConnectionAfterBadRequest()

◆ fSendBadRequestErrors()

◆ getInfoPtr() [1/2]

◆ getInfoPtr() [2/2]

◆ getMode()

◆ getWorkState()

◆ getWorkStateString()

◆ incomingConnection()

◆ isBanned()

◆ mainThreadID()

◆ nodeAddedSucessful()

◆ nodeConfirmend()

◆ nodeConnected()

◆ nodeDisconnected()

◆ nodeErrorOccured()

◆ nodeType()

◆ ping()

◆ prepareData()

◆ prepareForDelete()

◆ receivePing

◆ registerSocket()

◆ removeNode() [1/2]

◆ removeNode() [2/2]

◆ removeTask()

◆ requestError

◆ run()

◆ selectParser() [1/3]

◆ selectParser() [2/3]

◆ selectParser() [3/3]

◆ sendData() [1/2]

◆ sendData() [2/2]

◆ sendPackage()

◆ setCloseConnectionAfterBadRequest()

◆ setSendBadRequestErrors()

◆ sheduledTaskCount()

◆ sheduleTask()

◆ sigNoLongerSupport

◆ stop()

◆ unBan()

Friends And Related Symbol Documentation

◆ AbstractNodeParser

◆ AbstractNodeParserOld

◆ BigDataParser

◆ BigDataParserOld

◆ SocketFactory

◆ WebSocketController
