QH::AbstractTask Class Reference

The AbstractTask class. All tasks executed on separate thread. More...

#include <abstracttask.h>

Collaboration diagram for QH::AbstractTask:

Public Types
enum	TimeValMsec : qint64 {   Msec = 1 , Sec = 1000 * Msec , Min = 60 * Sec , Hour = 60 * Min ,   Day = 24 * Hour }
	The TimeVal enum contains all time values for a tasks scheduling. More...

Public Member Functions
	AbstractTask ()=default
virtual	~AbstractTask ()=default
ScheduleMode	mode () const
	mode This method retunr current mode of this task.
void	setMode (ScheduleMode newMode)
	setMode This method sets new mode of this task.
quint64	time () const
	time This is universal property. This property has its own meaning for each AbstractTask::mode. For more information see the ScheduleMode enum.
void	setTime (quint64 newTime)
	setTime This method sets new value for the AbstractTask::time property.
virtual bool	execute (AbstractNode *node) const =0
	execute This method will be invoked when task be executed.
int	taskId () const
	taskId This method return id of this task.
virtual bool	isValid () const
	isValid This method check task configuration and return true if task is valid else false.

Detailed Description

The AbstractTask class. All tasks executed on separate thread.

Definition at line 33 of file abstracttask.h.

Member Enumeration Documentation

TimeValMsec

enum QH::AbstractTask::TimeValMsec : qint64

The TimeVal enum contains all time values for a tasks scheduling.

Enumerator
Msec	Milessecundes.
Sec	Secundes.
Min	Minutes.
Hour	Hours.
Day	Days.

Definition at line 40 of file abstracttask.h.

Constructor & Destructor Documentation

AbstractTask()

QH::AbstractTask::AbstractTask ( )

default

~AbstractTask()

virtual QH::AbstractTask::~AbstractTask ( )

virtualdefault

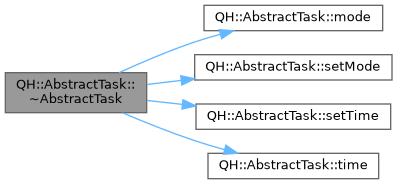

Here is the call graph for this function:

Member Function Documentation

execute()

virtual bool QH::AbstractTask::execute ( AbstractNode * node ) const

pure virtual

execute This method will be invoked when task be executed.

Parameters

node	This is pointer to node object.

Returns

true if the work winished successfull

Here is the call graph for this function:

isValid()

bool QH::AbstractTask::isValid ( ) const

virtual

isValid This method check task configuration and return true if task is valid else false.

Returns

true if task is valid else false.

Definition at line 39 of file abstracttask.cpp.

Here is the caller graph for this function:

mode()

ScheduleMode QH::AbstractTask::mode

(

)

const

mode This method retunr current mode of this task.

Returns

current mode of this task.

See also

AbstractTask::setMode

Definition at line 17 of file abstracttask.cpp.

Here is the caller graph for this function:

setMode()

void QH::AbstractTask::setMode

(

ScheduleMode

newMode

)

setMode This method sets new mode of this task.

Parameters

newMode

new mode of this task.

See also

AbstractTask::mode

Definition at line 21 of file abstracttask.cpp.

Here is the caller graph for this function:

setTime()

void QH::AbstractTask::setTime

(

quint64

newTime

)

setTime This method sets new value for the AbstractTask::time property.

Parameters

newTime

This is new value of the time propertye.

See also

AbstractTask::time

Definition at line 30 of file abstracttask.cpp.

Here is the caller graph for this function:

taskId()

int QH::AbstractTask::taskId

(

)

const

taskId This method return id of this task.

Returns

id of this task.

Definition at line 35 of file abstracttask.cpp.

Here is the caller graph for this function:

time()

quint64 QH::AbstractTask::time

(

)

const

time This is universal property. This property has its own meaning for each AbstractTask::mode. For more information see the ScheduleMode enum.

Returns

time property.

See also

AbstractTask::setTime

Definition at line 26 of file abstracttask.cpp.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/public/abstracttask.h
• src/public/abstracttask.cpp
