The SqlDBWriter class. This class write and read objects from database (hard level). Before working with database you need to initialize it. The SqlDBWriter support a any sql databases, For list of supported drivers see the Qt Docummentation https://doc.qt.io/qt-5/sql-driver.html For initialize a custom database driver you need to set an own params see the SqlDBWriter::initDb metthod. This class work only on own thread. For change working thread use the Qt method moveToThread. More...

#include <sqldbwriter.h>

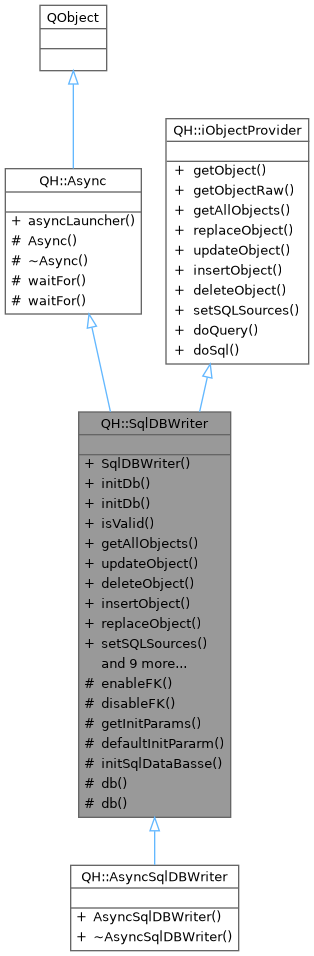

Inheritance diagram for QH::SqlDBWriter:

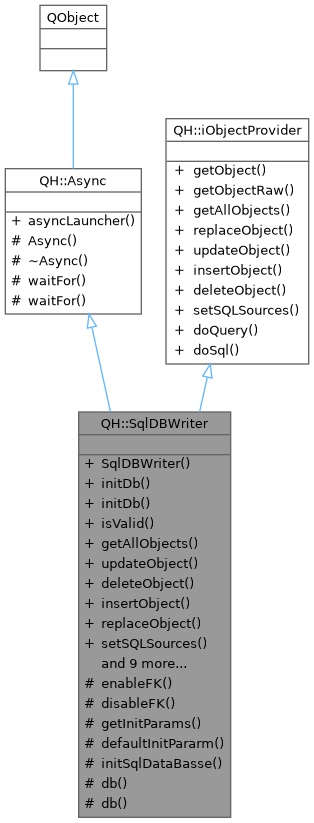

Collaboration diagram for QH::SqlDBWriter:

Public Member Functions
	SqlDBWriter (QThread *thread)
virtual bool	initDb (const QString &initDbParams=DEFAULT_DB_PATH)
	initDb This method is wraper of the initDb(const QVariantMap &params) method. This implementation read a initDbParams file and get all params from json.
virtual bool	initDb (const QVariantMap &params)
	initDb This method initialize a database params and create a new database if the old database not exists.
virtual bool	isValid () const
	isValid This method return true if database is successful inited and working correctly.
bool	getAllObjects (const PKG::DBObject &templateObject, QList< QSharedPointer< PKG::DBObject > > &result) override
	getAllObjects This method execute a select method of the templateObject and return list of all selected from databaes or cache objects
bool	updateObject (const QSharedPointer< PKG::DBObject > &ptr, bool wait=false) override
	updateObject This method execute a update method of the saveObject and save all changes into database.
bool	deleteObject (const QSharedPointer< PKG::DBObject > &ptr, bool wait=false) override
	deleteObject This method execute a delete method of obj and remove current object from database.
bool	insertObject (const QSharedPointer< PKG::DBObject > &ptr, bool wait=false, const QWeakPointer< unsigned int > &autoincrementIdResult={}) override
	insertObject This method execute a insert method of the saveObject and insert it into database.
bool	replaceObject (const QSharedPointer< PKG::DBObject > &ptr, bool wait=false) override
	replaceObject This method execute a replace method of the saveObject and insert or save if not exists, all changes into database.
void	setSQLSources (const QStringList &list) override
	setSQLSources This method set sql sources for deployed database.
bool	doQuery (const QString &query, const QVariantMap &bindValues={}, bool wait=false, QSqlQuery *result=nullptr) const override
	doQuery This method execute a query in this database.
bool	doSql (const QString &sqlFile, bool wait) const override
	doSql This method execute a query in this database.
QString	databaseLocation () const
	databaseLocation This method return location of database. If it is sqlite then return path to db file else return database name.
virtual	~SqlDBWriter () override
virtual bool	updateQuery (const QSharedPointer< QH::PKG::DBObject > &ptr) const
	updateQuery This method execute update query of object. For more Information see DBObject::prepareUpdateQuery.
virtual bool	selectQuery (const QH::PKG::DBObject &requestObject, QList< QSharedPointer< QH::PKG::DBObject > > &result)
	selectQuery generate select query to database from parameters.
virtual bool	deleteQuery (const QSharedPointer< QH::PKG::DBObject > &deleteObject) const
	deleteQuery This method prepare the delete object query.
virtual bool	insertQuery (const QSharedPointer< QH::PKG::DBObject > &insertObject, const QWeakPointer< unsigned int > &autoIncrementID={}) const
	insertQuery This method prepare the insert object query.
virtual bool	replaceQuery (const QSharedPointer< QH::PKG::DBObject > &insertObject) const
	replaceQuery This method prepare the replce object query.
Public Member Functions inherited from QH::Async
bool	asyncLauncher (const Job &job, bool await=false, bool freaze=true) const
	asyncLauncher This method invoke a job on the thread (using the asyncHandler method) of this object.
Public Member Functions inherited from QH::iObjectProvider
template<class TYPE>
QSharedPointer< TYPE >	getObject (const TYPE &templateVal)
	getObject this method return a strong pointer to DBObject created by select method of the template object (templateVal).
QSharedPointer< PKG::DBObject >	getObjectRaw (const PKG::DBObject &templateVal)
	getObjectRaw This method return object without test object type.

Protected Member Functions
bool	enableFK ()
	enableFK This method enable foreign key for the sqlite database.
bool	disableFK ()
	disableFK This method disable foreign key for the sqlite database.
virtual QVariantMap	getInitParams (const QString &initFile) const
	getInitPararm This method read parameters of database.
virtual QVariantMap	defaultInitPararm () const
	defaultInitPararm This method return default parameters of the database.
virtual QSqlDatabase	initSqlDataBasse (const QString &driverName, const QString &name)
	initSqlDataBasse This method create ad database connection. Without configuration. This method invoked in the initDbPrivate method.
QSqlDatabase *	db ()
	db This method return db connection. If SqlDBWriter in not inited then return nullptr. For more information about initialization the SqlDBWriter see the SqlDBWriter::initDb method.
const QSqlDatabase *	db () const
	db This is constant implementation of the SqlDBWriter::db method.
Protected Member Functions inherited from QH::Async
	Async (QThread *thread)
	Async This is default constructor of the async object.
	~Async ()
bool	waitFor (bool *condition, int timeout=WAIT_TIME, bool freaze=true) const
	waitFor This is base wait function.
bool	waitFor (const Job &condition, int timeout=WAIT_TIME, bool freaze=true) const
	waitFor This is base wait function.

Additional Inherited Members
Public Types inherited from QH::Async
using	Job = std::function<bool()>

Detailed Description

The SqlDBWriter class. This class write and read objects from database (hard level). Before working with database you need to initialize it. The SqlDBWriter support a any sql databases, For list of supported drivers see the Qt Docummentation https://doc.qt.io/qt-5/sql-driver.html For initialize a custom database driver you need to set an own params see the SqlDBWriter::initDb metthod. This class work only on own thread. For change working thread use the Qt method moveToThread.

Definition at line 35 of file sqldbwriter.h.

Constructor & Destructor Documentation

◆ SqlDBWriter()

QH::SqlDBWriter::SqlDBWriter ( QThread * thread )

Definition at line 253 of file sqldbwriter.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ~SqlDBWriter()

QH::SqlDBWriter::~SqlDBWriter ( )

overridevirtual

Definition at line 348 of file sqldbwriter.cpp.

Member Function Documentation

◆ databaseLocation()

QString QH::SqlDBWriter::databaseLocation ( ) const

databaseLocation This method return location of database. If it is sqlite then return path to db file else return database name.

Returns: path or name of database.

Definition at line 341 of file sqldbwriter.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ db() [1/2]

QSqlDatabase * QH::SqlDBWriter::db ( )

protected

db This method return db connection. If SqlDBWriter in not inited then return nullptr. For more information about initialization the SqlDBWriter see the SqlDBWriter::initDb method.

Returns: pointer to actual database connection.

Definition at line 245 of file sqldbwriter.cpp.

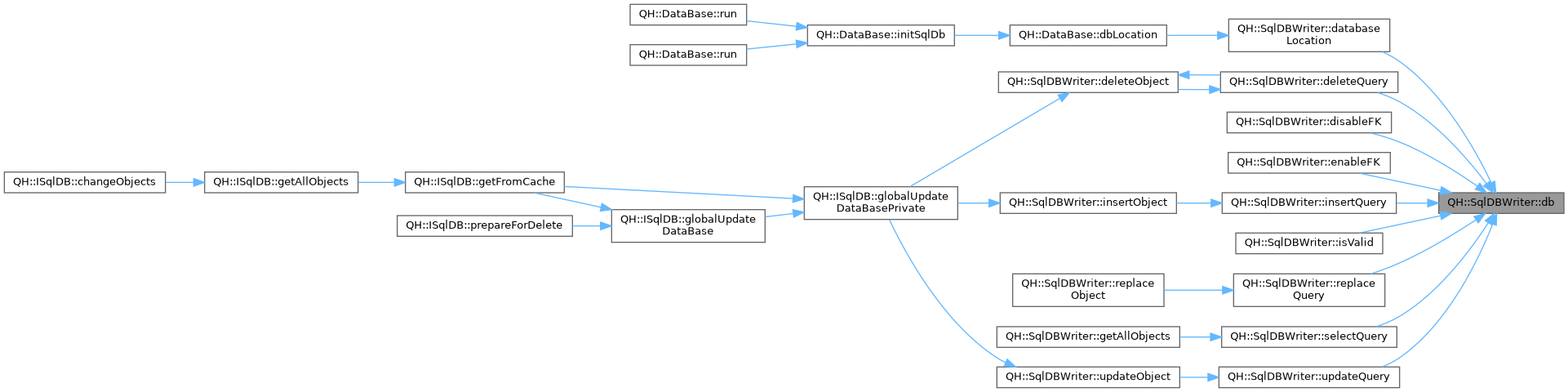

Here is the caller graph for this function:

◆ db() [2/2]

const QSqlDatabase * QH::SqlDBWriter::db ( ) const

protected

db This is constant implementation of the SqlDBWriter::db method.

Returns: return const pointer to database connection.

Definition at line 249 of file sqldbwriter.cpp.

◆ defaultInitPararm()

QVariantMap QH::SqlDBWriter::defaultInitPararm ( ) const

protectedvirtual

defaultInitPararm This method return default parameters of the database.

Returns: map of database params.

Support parameters of database:

DBDriver - This is sql driver of data base for more information see The Qt Documentations https://doc.qt.io/qt-5/sql-driver.html (or QH_DB_DRIVER)
DBFilePath - This is path to file of data base (sqlite only). This is phusical location of sqlite database. Or (QH_DB_FILE_PATH)
DBInitFile - This is sql file with sql code (structure) with default structure of the database. Or (QH_DB_INIT_FILE)
DBPass - This is password of a remote database. Or (QH_DB_PASS)
DBLogin - This is login of a remote database. Or (QH_DB_LOGIN)
DBHost - This is host address of a remote database. Or (QH_DB_HOST)
DBPort - port of a remote database. or (QH_DB_PORT)
DBBackUpPath - path of database backups (sqlite only). Or (QH_DB_BACKUP_PATH)

Definition at line 231 of file sqldbwriter.cpp.

Here is the caller graph for this function:

◆ deleteObject()

bool QH::SqlDBWriter::deleteObject	(	const QSharedPointer< PKG::DBObject > &	obj,
		bool	wait = false )

overridevirtual

deleteObject This method execute a delete method of obj and remove current object from database.

Parameters

obj	This is object for removing.
wait	This arguments force current thread wait for the function finishing.

Returns: true if object is removed successful else false.

Implements QH::iObjectProvider.

Definition at line 300 of file sqldbwriter.cpp.

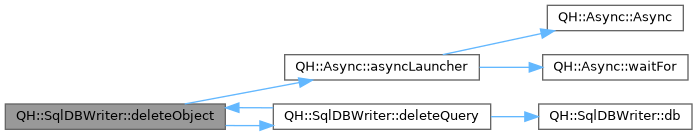

Here is the call graph for this function:

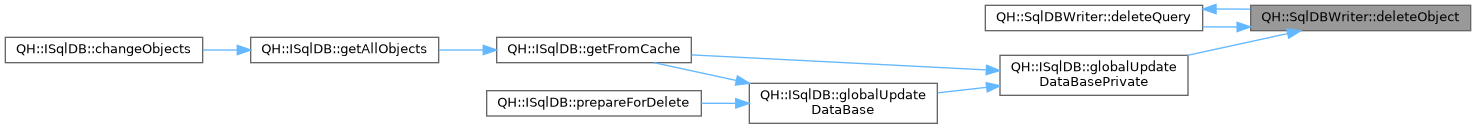

Here is the caller graph for this function:

◆ deleteQuery()

bool QH::SqlDBWriter::deleteQuery ( const QSharedPointer< QH::PKG::DBObject > & deleteObject ) const

virtual

deleteQuery This method prepare the delete object query.

Parameters

deleteObject This is tempalte object for generate a delete query.

Returns: true if query generated successful.

Definition at line 483 of file sqldbwriter.cpp.

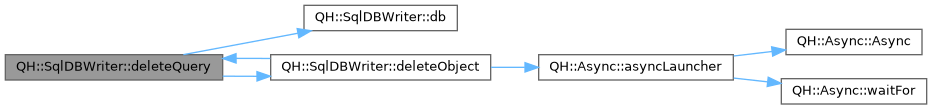

Here is the call graph for this function:

Here is the caller graph for this function:

◆ disableFK()

bool QH::SqlDBWriter::disableFK ( )

protected

disableFK This method disable foreign key for the sqlite database.

Returns: return true if new settings set is correctly.

Definition at line 192 of file sqldbwriter.cpp.

Here is the call graph for this function:

◆ doQuery()

bool QH::SqlDBWriter::doQuery	(	const QString &	query,
		const QVariantMap &	bindValues = {},
		bool	wait = false,
		QSqlQuery *	result = nullptr ) const

overridevirtual

doQuery This method execute a query in this database.

Parameters

query	This is query that will be executed.
bindValues	This is values that need to bind before excute query.
result	This is query result value.

Warning: The result works onlt on await mode. Set the wait param to true.

Returns: true if the query finished successful

Implements QH::iObjectProvider.

Definition at line 408 of file sqldbwriter.cpp.

Here is the call graph for this function:

◆ doSql()

bool QH::SqlDBWriter::doSql	(	const QString &	sqlFile,
		bool	wait ) const

overridevirtual

doSql This method execute a query in this database.

Parameters

sqlFile This is sql file that will be executed.

Returns: true if the query finished successful

Implements QH::iObjectProvider.

Definition at line 420 of file sqldbwriter.cpp.

Here is the call graph for this function:

◆ enableFK()

bool QH::SqlDBWriter::enableFK ( )

protected

enableFK This method enable foreign key for the sqlite database.

Returns: return true if new settings set is correctly.

Definition at line 177 of file sqldbwriter.cpp.

Here is the call graph for this function:

◆ getAllObjects()

bool QH::SqlDBWriter::getAllObjects	(	const PKG::DBObject &	templateObject,
		QList< QSharedPointer< PKG::DBObject > > &	result )

overridevirtual

getAllObjects This method execute a select method of the templateObject and return list of all selected from databaes or cache objects

Parameters

templateObject	This is template object for prepare a select request.
result	This is return value, list of selected objects.

Returns: true if objects have in db else false.

Implements QH::iObjectProvider.

Definition at line 281 of file sqldbwriter.cpp.

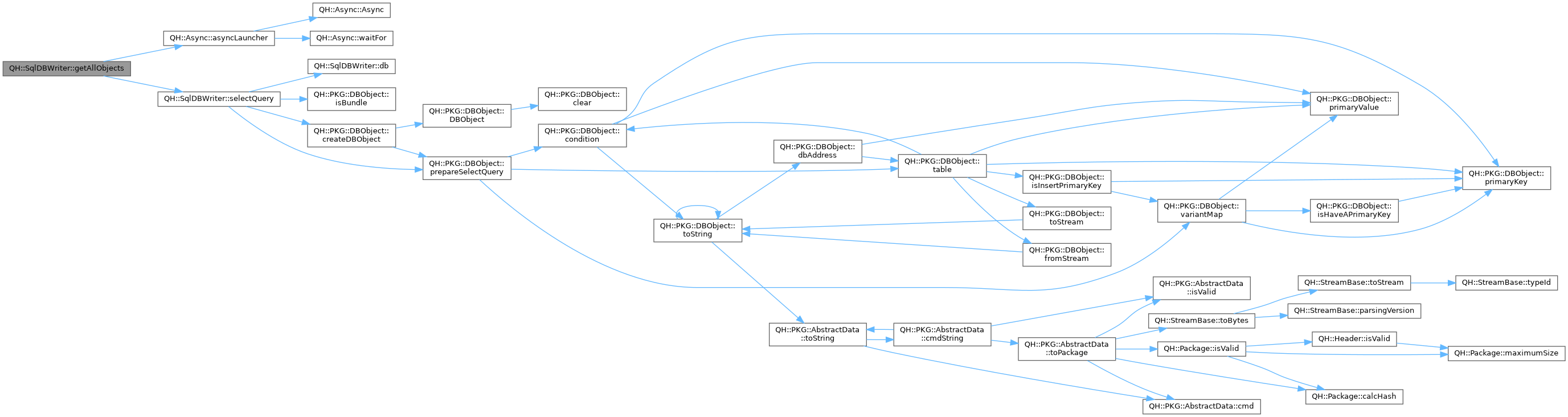

Here is the call graph for this function:

◆ getInitParams()

QVariantMap QH::SqlDBWriter::getInitParams ( const QString & initFile ) const

protectedvirtual

getInitPararm This method read parameters of database.

Support parameters of database:

DBDriver - This is sql driver of data base for more information see The Qt Documentatuons https://doc.qt.io/qt-5/sql-driver.html
DBFilePath - This is path to file of data base (sqlite only). This is phusical location of sqlite database.
DBInitFile - This is sql file with sql code (structure) with default structure of the database.
DBPass - This is password of a remote database.
DBLogin - This is login of a remote database.
DBHost - This is host addres of a remote database.
DBPort - port of a remote database.

Parameters

initFile This is path to json file with database configuration.

Returns: The Map with readed configuration. IF file is incorrect or not exists then return an empty map.

Definition at line 209 of file sqldbwriter.cpp.

Here is the caller graph for this function:

◆ initDb() [1/2]

bool QH::SqlDBWriter::initDb ( const QString & initDbParams = DEFAULT_DB_PATH )

virtual

initDb This method is wraper of the initDb(const QVariantMap &params) method. This implementation read a initDbParams file and get all params from json.

Note: this method must be invoked in the thread as a working thread of this object.

Parameters

initDbParams This is path to json configuration file with settings of database. For more information see description of the SqlDBWriter::getInitParams method.

Returns: true if database initialize successful.

Definition at line 257 of file sqldbwriter.cpp.

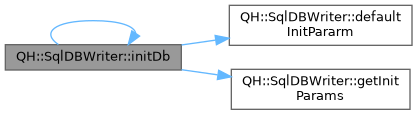

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initDb() [2/2]

bool QH::SqlDBWriter::initDb ( const QVariantMap & params )

virtual

initDb This method initialize a database params and create a new database if the old database not exists.

Note: this method must be invoked in the some thread as a working thread of this object.

Parameters

params This is params of initialize a database. For more information about available and supported parameters see the description SqlDBWriter::getInitParams method. For more information see description of the SqlDBWriter::getInitParams method.

Returns: true if database initialize successful.

Definition at line 269 of file sqldbwriter.cpp.

Here is the call graph for this function:

◆ initSqlDataBasse()

QSqlDatabase QH::SqlDBWriter::initSqlDataBasse	(	const QString &	driverName,
		const QString &	name )

protectedvirtual

initSqlDataBasse This method create ad database connection. Without configuration. This method invoked in the initDbPrivate method.

Note: Overrde this method for create f custom method of initialization of the db connection.

Parameters

driverName	This is name of sql driver for more information see about Qt Sql Drivers.
name	This is name of path of database.

Returns: database object.

Definition at line 238 of file sqldbwriter.cpp.

◆ insertObject()

bool QH::SqlDBWriter::insertObject	(	const QSharedPointer< PKG::DBObject > &	saveObject,
		bool	wait = false,
		const QWeakPointer< unsigned int > &	autoincrementIdResult = {} )

overridevirtual

insertObject This method execute a insert method of the saveObject and insert it into database.

Note: This method insert object into database only. IF object is exits in the database then this method return false.

Parameters

saveObject	This is object for inserting.
wait	This arguments force current thread wait for the function finishing.
autoincrementIdResult	is id of the insert query to the Table with autoincrement id field.

Returns: true if objects is saved successful else false. Note return two value. First is boolean result, second is id of inserted value.

Note: id will be returned only for the autoincement records.

Implements QH::iObjectProvider.

Definition at line 309 of file sqldbwriter.cpp.

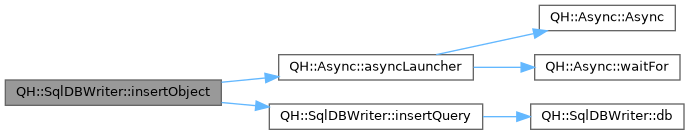

Here is the call graph for this function:

Here is the caller graph for this function:

◆ insertQuery()

bool QH::SqlDBWriter::insertQuery	(	const QSharedPointer< QH::PKG::DBObject > &	insertObject,
		const QWeakPointer< unsigned int > &	autoIncrementID = {} ) const

virtual

insertQuery This method prepare the insert object query.

Parameters

insertObject	This is strong pointer of object for generate the insert query.
autoIncrementID	Week pointer to result id of new inserteed record.

Returns: true if query generated successful.

Note: Works only of the int autoincrement ids...

Definition at line 362 of file sqldbwriter.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isValid()

bool QH::SqlDBWriter::isValid ( ) const

virtual

isValid This method return true if database is successful inited and working correctly.

Returns: true if database working is correctly.

Definition at line 277 of file sqldbwriter.cpp.

Here is the call graph for this function:

◆ replaceObject()

bool QH::SqlDBWriter::replaceObject	(	const QSharedPointer< PKG::DBObject > &	saveObject,
		bool	wait = false )

overridevirtual

replaceObject This method execute a replace method of the saveObject and insert or save if not exists, all changes into database.

Note: This method update object in the database only. If you try update not exists object then this method return false.

Parameters

saveObject	This is object for updating.
wait	This arguments force current thread wait for the function finishing.

Returns: true if objects is updated successful else false.

Implements QH::iObjectProvider.

Definition at line 329 of file sqldbwriter.cpp.

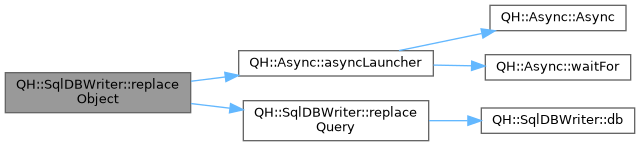

Here is the call graph for this function:

◆ replaceQuery()

bool QH::SqlDBWriter::replaceQuery ( const QSharedPointer< QH::PKG::DBObject > & insertObject ) const

virtual

replaceQuery This method prepare the replce object query.

Parameters

insertObject This is strong pointer of object for generate the insert query.

Returns: true if query generated successful.

Note: This method generate query for replace objects in the database.

Definition at line 389 of file sqldbwriter.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ selectQuery()

bool QH::SqlDBWriter::selectQuery	(	const QH::PKG::DBObject &	requestObject,
		QList< QSharedPointer< QH::PKG::DBObject > > &	result )

virtual

selectQuery generate select query to database from parameters.

Parameters

requestObject	This is template object for generate select query.
result	This is return values.

Returns: true if all good else false.

Definition at line 430 of file sqldbwriter.cpp.

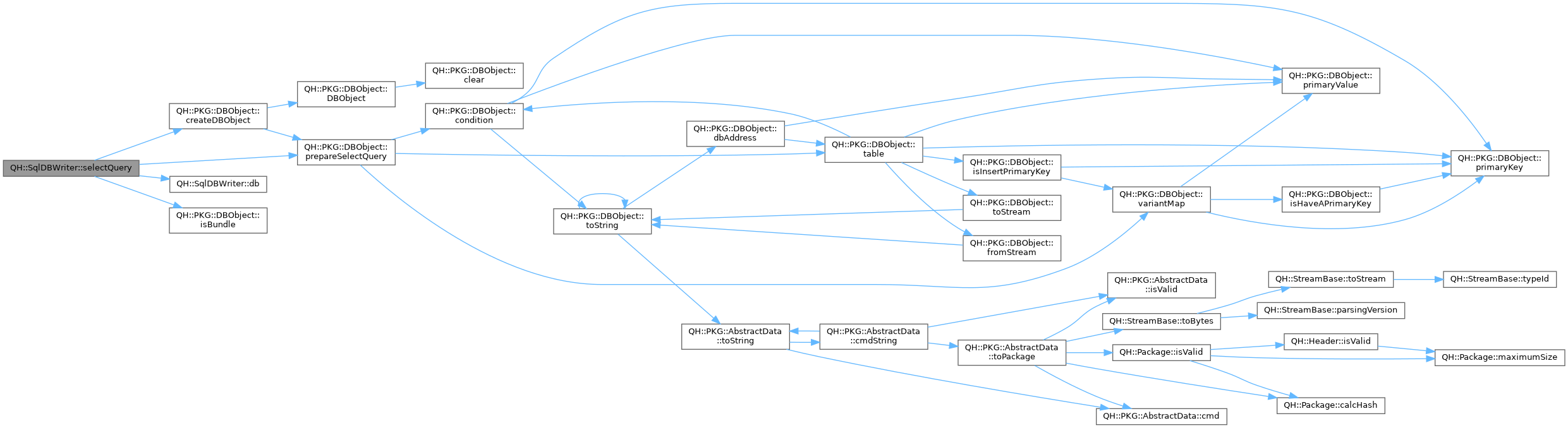

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setSQLSources()

void QH::SqlDBWriter::setSQLSources ( const QStringList & list )

overridevirtual

setSQLSources This method set sql sources for deployed database.

Parameters

list	This is list of sql files with database sources.

For more information about sql sources see the DataBaseNode::SQLSources method.

Implements QH::iObjectProvider.

Definition at line 337 of file sqldbwriter.cpp.

◆ updateObject()

bool QH::SqlDBWriter::updateObject	(	const QSharedPointer< PKG::DBObject > &	saveObject,
		bool	wait = false )

overridevirtual

updateObject This method execute a update method of the saveObject and save all changes into database.

Note: This method update object in the database only.

Warning: This method do not guarantee that return false if The updated object is not exist.

Parameters

saveObject	This is object for updating.
wait	This arguments force current thread wait for the function finishing.

Returns: true if objects is updated successful else false.

Implements QH::iObjectProvider.

Definition at line 291 of file sqldbwriter.cpp.

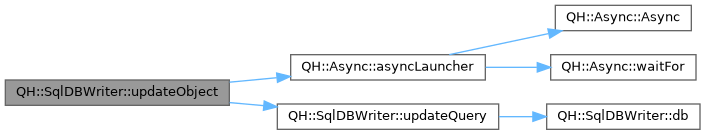

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateQuery()

bool QH::SqlDBWriter::updateQuery ( const QSharedPointer< QH::PKG::DBObject > & ptr ) const

virtual

updateQuery This method execute update query of object. For more Information see DBObject::prepareUpdateQuery.

Parameters

ptr	This is strong pointer to object that need to update into a database.

Returns: true if function finished successful.

Definition at line 501 of file sqldbwriter.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/public/sqldbwriter.h
src/public/sqldbwriter.cpp

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SqlDBWriter()

◆ ~SqlDBWriter()

Member Function Documentation

◆ databaseLocation()

◆ db() [1/2]

◆ db() [2/2]

◆ defaultInitPararm()

◆ deleteObject()

◆ deleteQuery()

◆ disableFK()

◆ doQuery()

◆ doSql()

◆ enableFK()

◆ getAllObjects()

◆ getInitParams()

◆ initDb() [1/2]

◆ initDb() [2/2]

◆ initSqlDataBasse()

◆ insertObject()

◆ insertQuery()

◆ isValid()

◆ replaceObject()

◆ replaceQuery()

◆ selectQuery()

◆ setSQLSources()

◆ updateObject()

◆ updateQuery()
