QH::Async Class Reference

The Async class This is bundle of async templates and async wrappers. More...

#include <async.h>

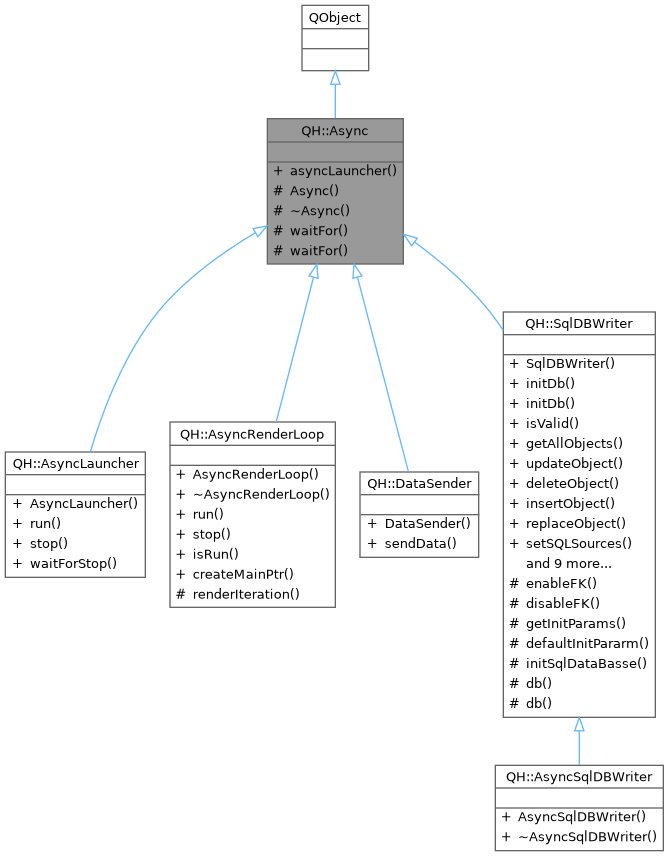

Inheritance diagram for QH::Async:

Collaboration diagram for QH::Async:

Public Types
using	Job = std::function<bool()>

Public Member Functions
bool	asyncLauncher (const Job &job, bool await=false, bool freaze=true) const
	asyncLauncher This method invoke a job on the thread (using the asyncHandler method) of this object.

Protected Member Functions
	Async (QThread *thread)
	Async This is default constructor of the async object.
	~Async ()
bool	waitFor (bool *condition, int timeout=WAIT_TIME, bool freaze=true) const
	waitFor This is base wait function.
bool	waitFor (const Job &condition, int timeout=WAIT_TIME, bool freaze=true) const
	waitFor This is base wait function.

Detailed Description

The Async class This is bundle of async templates and async wrappers.

Note

If you use this object then you do not need include QObject because this class include the QObject class. Do not forget the Q_OBJECT macross.

All objects of this class must be initialized with the . So The constructor is private and the AsynFactyry class is a friend class of the Async class.

Definition at line 25 of file async.h.

Member Typedef Documentation

Job

using QH::Async::Job = std::function<bool()>

The Job is wrapper of the std::function<bool()> type. This type registered like the Qt meta type For using in the qt metasystem.

Definition at line 34 of file async.h.

Constructor & Destructor Documentation

Async()

QH::Async::Async ( QThread * thread )

protected

Async This is default constructor of the async object.

Parameters

thread	This is work thread of the async object.
ptr	This is pointer to qtparent of this object.

Note

thread must be a valid thread. It is allowed to use the node worker (main) thread: in this case all jobs are executed directly in that thread.

Definition at line 38 of file async.cpp.

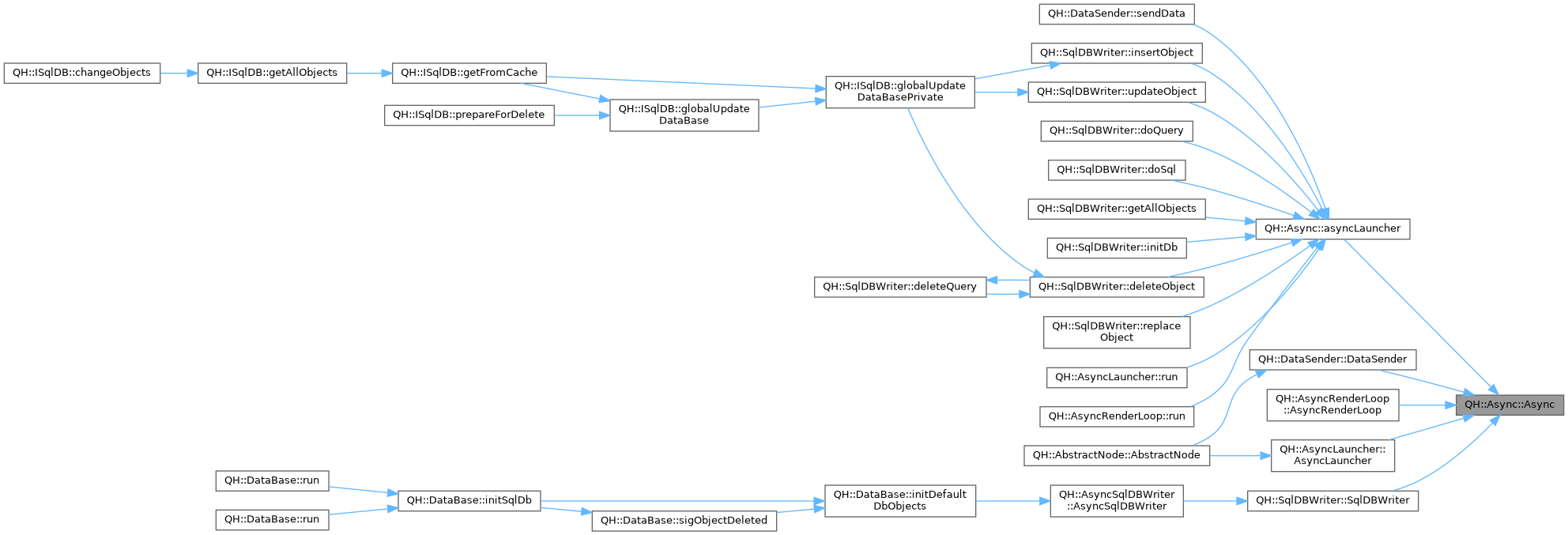

Here is the caller graph for this function:

~Async()

QH::Async::~Async ( )

protected

Note

This is async distructor. This distructor wait for finishing of the own threads befor delete.

Definition at line 45 of file async.cpp.

Member Function Documentation

asyncLauncher()

bool QH::Async::asyncLauncher	(	const Job &	job,
		bool	await = false,
		bool	freaze = true ) const

asyncLauncher This method invoke a job on the thread (using the asyncHandler method) of this object.

Parameters

job	This is function with needed job.
await	This is boolean option for enable or disable wait for finish of the job function.
freaze	This option disaable process event of waiting of results.

Returns

true if the job function started correctly. If the await option is true then this method return result of job function.

Definition at line 78 of file async.cpp.

Here is the call graph for this function:

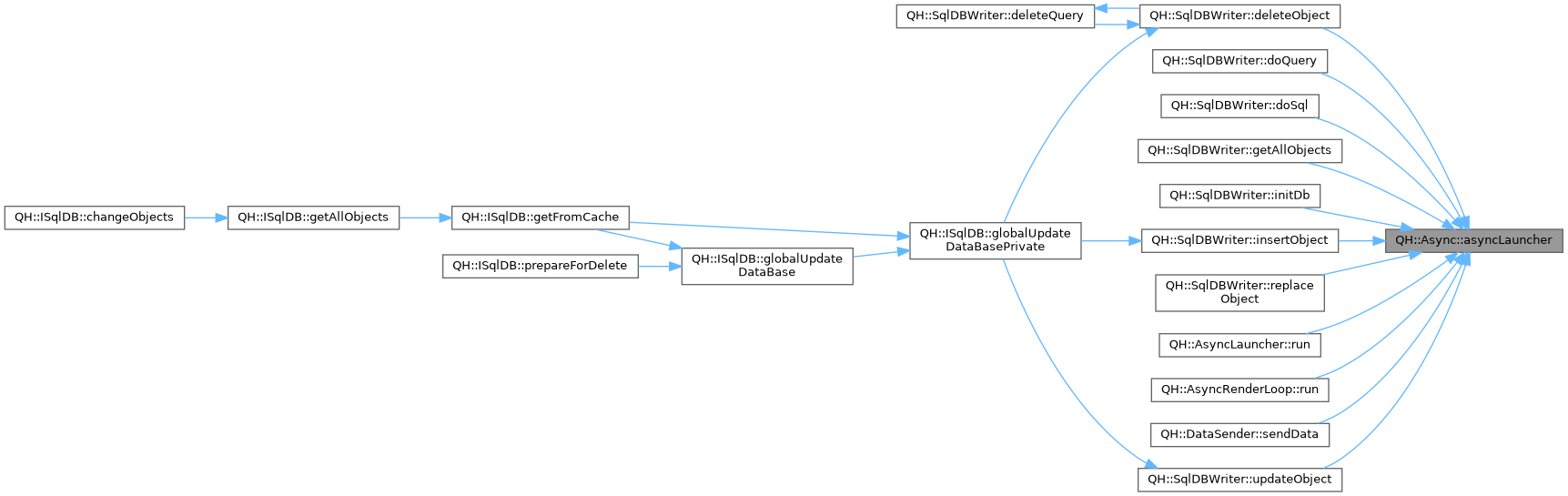

Here is the caller graph for this function:

waitFor() [1/2]

bool QH::Async::waitFor ( bool * condition, int timeout = WAIT_TIME, bool freaze = true ) const

protected

waitFor This is base wait function.

Parameters

condition	This is pointer to awaiting boolean variable.
timeout	This is maximum time for wait. By default this value equals WAIT_TIME it is 30000 msec.
freaze	This frease current thread for waiting results of another thread. If you set this option to false then will be invoked process event method.

Returns

true if condition is true.

Definition at line 67 of file async.cpp.

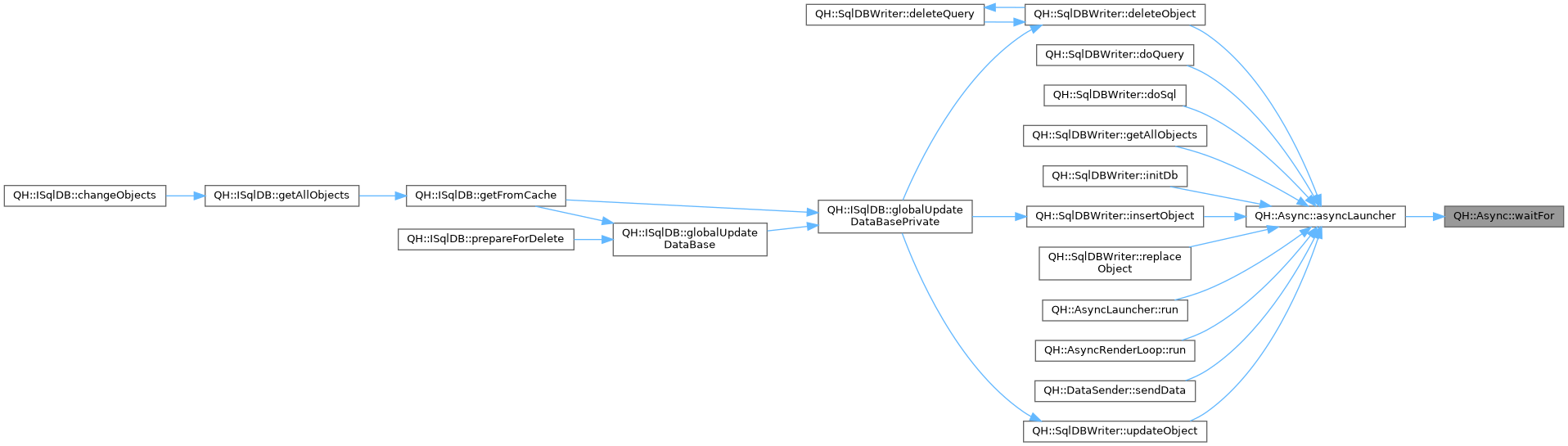

Here is the caller graph for this function:

waitFor() [2/2]

bool QH::Async::waitFor ( const Job & condition, int timeout = WAIT_TIME, bool freaze = true ) const

protected

waitFor This is base wait function.

Parameters

condition	This is lambda method with condition results.
timeout	This is maximum time for wait. By default this value equals WAIT_TIME it is 30000 msec.
freaze	This frease current thread for waiting results of another thread. If you set this option to false then will be invoked process event method.

Returns

true if condition is true.

Definition at line 118 of file async.cpp.

---

The documentation for this class was generated from the following files:

• src/public/async.h
• src/public/async.cpp
