QH::AsyncRenderLoop Class Reference

The AsyncRenderLoop is a class for asynchronous rendering. This class is used to create a render loop that is executed in a separate thread. To use this class, you must inherit from it and implement the renderIteration method. example: : More...

#include <asyncrenderloop.h>

Inheritance diagram for QH::AsyncRenderLoop:

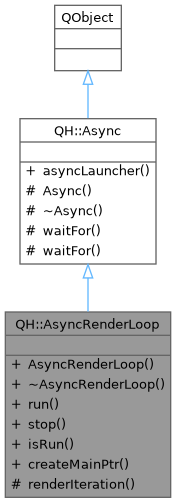

Collaboration diagram for QH::AsyncRenderLoop:

Classes
class	MainSharedPtr
	The MainSharedPtr class is a helper class for creating a shared pointer to the render loop. More...

Public Member Functions
	AsyncRenderLoop (QThread *thread)
	~AsyncRenderLoop ()
virtual void	run ()
	run This method starts the render loop.
virtual void	stop ()
	stop This method stops the render loop.
bool	isRun () const
	isRun This method returns the state of the render loop.
Public Member Functions inherited from QH::Async
bool	asyncLauncher (const Job &job, bool await=false, bool freaze=true) const
	asyncLauncher This method invoke a job on the thread (using the asyncHandler method) of this object.

Static Public Member Functions
template<typename Type, typename... Args>
static MainSharedPtr< Type >	createMainPtr (Args &&...arguments)
	createMainPtr This method creates a shared pointer to the render loop.

Protected Member Functions
virtual void	renderIteration (int mmsec)=0
	renderIteration This method is called in each iteration of the render loop. This method must be implemented in the derived class.
Protected Member Functions inherited from QH::Async
	Async (QThread *thread)
	Async This is default constructor of the async object.
	~Async ()
bool	waitFor (bool *condition, int timeout=WAIT_TIME, bool freaze=true) const
	waitFor This is base wait function.
bool	waitFor (const Job &condition, int timeout=WAIT_TIME, bool freaze=true) const
	waitFor This is base wait function.

Additional Inherited Members
Public Types inherited from QH::Async
using	Job = std::function<bool()>

Detailed Description

The AsyncRenderLoop is a class for asynchronous rendering. This class is used to create a render loop that is executed in a separate thread. To use this class, you must inherit from it and implement the renderIteration method. example: :

class MyRenderLoop: public AsyncRenderLoop
{
public:
   MyRenderLoop(QThread* thread, QObject* ptr = nullptr): AsyncRenderLoop(thread, ptr) {}
   void renderIteration(int msec) override {
   // your code here
   }
};
int main (int argc, char* argv[]) {
   QCoreApplication app(argc, argv);

   MyRenderLoop loop(new thread());
   loop.run();
   loop.stop();

   return app.exec();

Warning

This class may be broken if you use it as a QSharedPointer and push WeackPointer to the child objects. To solve this issue use the AsyncRenderLoop::MainSharedPtr class.

Example:

class MyRenderLoop: public AsyncRenderLoop
{
...
};

int main (int argc, char* argv[]) {
  auto loop = QSharedPointer<MyRenderLoop>(new MyRenderLoop(new QThread())); // wrong! it will be broken
  auto loop = MyRenderLoop::MainSharedPtr<MyRenderLoop>>(new QThread()); // right!
  auto loop = MyRenderLoop::createMainPtr<MyRenderLoop>(new QThread()); // this is short version of initialization Main pointer
 ...
 return app.exec();
 }

Definition at line 58 of file asyncrenderloop.h.

Constructor & Destructor Documentation

AsyncRenderLoop()

QH::AsyncRenderLoop::AsyncRenderLoop

(

QThread *

thread

)

Definition at line 14 of file asyncrenderloop.cpp.

Here is the call graph for this function:

~AsyncRenderLoop()

QH::AsyncRenderLoop::~AsyncRenderLoop

(

)

Definition at line 17 of file asyncrenderloop.cpp.

Here is the call graph for this function:

Member Function Documentation

createMainPtr()

template<typename Type, typename... Args>

MainSharedPtr< Type > QH::AsyncRenderLoop::createMainPtr ( Args &&... arguments )

inlinestatic

createMainPtr This method creates a shared pointer to the render loop.

Template Parameters

Type	type of the render loop object.
Args	arguments for the constructor of the render loop object.

Parameters

arguments

arguments for the constructor of the render loop object.

Returns

shared pointer to the render loop.

Definition at line 151 of file asyncrenderloop.h.

isRun()

bool QH::AsyncRenderLoop::isRun

(

)

const

isRun This method returns the state of the render loop.

Returns

true if the render loop is running, else false.

Definition at line 53 of file asyncrenderloop.cpp.

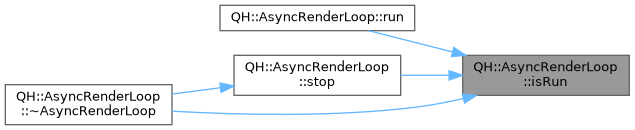

Here is the caller graph for this function:

renderIteration()

virtual void QH::AsyncRenderLoop::renderIteration ( int mmsec )

protectedpure virtual

renderIteration This method is called in each iteration of the render loop. This method must be implemented in the derived class.

Parameters

mmsec

time in microseconds from the last iteration.

See also

stop

run

run()

void QH::AsyncRenderLoop::run ( )

virtual

run This method starts the render loop.

Definition at line 28 of file asyncrenderloop.cpp.

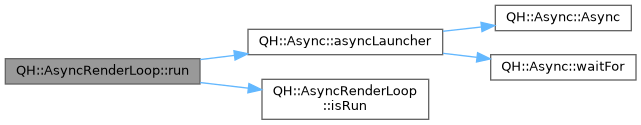

Here is the call graph for this function:

stop()

void QH::AsyncRenderLoop::stop ( )

virtual

stop This method stops the render loop.

Definition at line 44 of file asyncrenderloop.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/public/asyncrenderloop.h
• src/public/asyncrenderloop.cpp
