The NotificationService class. This class used for working with notify. More...

#include <notificationservice.h>

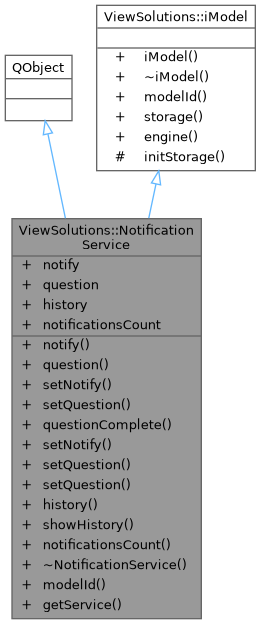

Inheritance diagram for ViewSolutions::NotificationService:

Collaboration diagram for ViewSolutions::NotificationService:

Signals
void	notifyChanged ()
	notifyChanged This signal emited whet the notificator (Ths object) received a new notification message.
void	questionChanged ()
	questionChanged This signal emited whet the notificator (Ths object) received a new question message.
void	questionCompleted (bool accepted, int questionCode)
	questionCompleted This signal emited when youser clcik any buttons on question popup.
void	historyListChanged ()
	historyListChanged This signal is emitted when the notification history list was changed.
void	sigShowHistory ()
	sigShowHistory This signal is emitted when the notification history view should be shown (see showHistory).
void	countNotificationsChanged ()
	countNotificationsChanged This signal is emitted when the count of history notifications was changed.

Public Member Functions
NotificationData	notify () const
	Notify This method return data of the last notify message.
NotificationData	question () const
	question This method return data of the last question.
void	setNotify (const NotificationData &notify)
	setNotify This method add new notification message of application.
int	setQuestion (const Listner &listner, const NotificationData &question)
	setQuestion This method sets information of the users question.
Q_INVOKABLE void	questionComplete (bool accepted, int code=0)
	questionComplete This method is main responce method of the users questions.
Q_INVOKABLE void	setNotify (const QString &title="", const QString &text="", const QString &img="", int type=NotificationData::Normal)
	setNotify This method set new notify message for user. When notify changed on main application windows shows notify message.
Q_INVOKABLE int	setQuestion (QObject *listnerObject, const QString &listnerMethod, const QString &title="", const QString &text="", const QString &img="", int code=0)
	setQuestion This method set new question for user. When question changed on main application windows shows question.
int	setQuestion (const Listner &listner, const QString &title="", const QString &text="", const QString &img="", int code=0)
	setQuestion This method set new question for user. When question changed on main application windows shows question.
QObject *	history () const
	history - This method used for return notify history model.
Q_INVOKABLE void	showHistory ()
	showHistory - This method used for emit signal by which show notification menu.
Q_INVOKABLE int	notificationsCount () const
	notificationsCount - This method used for return count of history notifications.
	~NotificationService ()
QString	modelId () const override
	modelId returns text model id. override this method to provide access to model in qml or other models.
Public Member Functions inherited from ViewSolutions::iModel
	iModel ()=default
virtual	~iModel ()=default
const QWeakPointer< ModelStorage > &	storage () const
	storage returns storage object. this method return context of the model's storage.
QQmlEngine *	engine () const
	engine returns qml engine.

Static Public Member Functions
static NotificationService *	getService ()
	getService This method return instance to notify service.

Properties
NotificationData	notify
NotificationData	question
QObject *	history
int	notificationsCount

Additional Inherited Members
Protected Member Functions inherited from ViewSolutions::iModel
virtual void	initStorage (const QWeakPointer< ModelStorage > &newStorage)
	initStorage This method is called by storage object after adding model to storage.

Detailed Description

The NotificationService class. This class used for working with notify.

This service displays notifications and questions on the main application window and stores all sent notifications in a history model (see HistoryNotificationsModel).

The service is a singleton - use the getService method to access it.

Example:

// Show a notification:
ViewSolutions::NotificationService::getService()->setNotify("Title", "Message");

// Ask a question and wait for the user answer:
ViewSolutions::NotificationService::getService()->setQuestion(
    [](bool accept) {
        if (accept)
            qDebug() << "User accepted";
    },
    "Are you sure?");

In QML the service is used by the NotificationServiceView component, it must be exposed as the notificationService context property:

engine.rootContext()->setContextProperty("notificationService",

ViewSolutions::NotificationService::getService());

ViewSolutions::iModel::engine

QQmlEngine * engine() const

engine returns qml engine.

Definition imodel.cpp:19

import ViewSolutions

Item {
    ViewSolutions.NotificationServiceView {}
}

Definition at line 63 of file notificationservice.h.

Constructor & Destructor Documentation

◆ ~NotificationService()

ViewSolutions::NotificationService::~NotificationService ( )

Definition at line 23 of file notificationservice.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Function Documentation

◆ countNotificationsChanged

void ViewSolutions::NotificationService::countNotificationsChanged ( )

signal

countNotificationsChanged This signal is emitted when the count of history notifications was changed.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getService()

NotificationService * ViewSolutions::NotificationService::getService ( )

static

getService This method return instance to notify service.

Returns: pointer to the notification service.

Definition at line 107 of file notificationservice.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ history()

QObject * ViewSolutions::NotificationService::history ( ) const

history - This method used for return notify history model.

Returns: history model of all notify.

Definition at line 112 of file notificationservice.cpp.

◆ historyListChanged

void ViewSolutions::NotificationService::historyListChanged ( )

signal

historyListChanged This signal is emitted when the notification history list was changed.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ modelId()

QString ViewSolutions::NotificationService::modelId ( ) const

overridevirtual

modelId returns text model id. override this method to provide access to model in qml or other models.

Returns: model id.

Implements ViewSolutions::iModel.

Definition at line 125 of file notificationservice.cpp.

◆ notificationsCount()

int ViewSolutions::NotificationService::notificationsCount ( ) const

notificationsCount - This method used for return count of history notifications.

Returns: count of history notifications.

Definition at line 120 of file notificationservice.cpp.

◆ notify()

NotificationData ViewSolutions::NotificationService::notify ( ) const

Notify This method return data of the last notify message.

Returns: return data of the last notify message.

Definition at line 27 of file notificationservice.cpp.

◆ notifyChanged

void ViewSolutions::NotificationService::notifyChanged ( )

signal

notifyChanged This signal emited whet the notificator (Ths object) received a new notification message.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ question()

NotificationData ViewSolutions::NotificationService::question ( ) const

question This method return data of the last question.

Returns: question data.

Definition at line 31 of file notificationservice.cpp.

◆ questionChanged

void ViewSolutions::NotificationService::questionChanged ( )

signal

questionChanged This signal emited whet the notificator (Ths object) received a new question message.

Here is the call graph for this function:

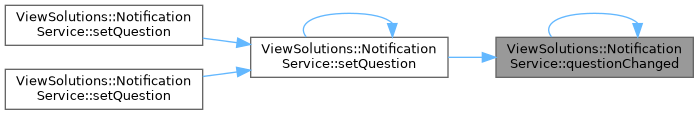

Here is the caller graph for this function:

◆ questionComplete()

void ViewSolutions::NotificationService::questionComplete	(	bool	accepted,
		int	code = 0 )

questionComplete This method is main responce method of the users questions.

Parameters

accepted	are boolean option. Set this option to true if user click on accept button.
code	are automaticly generated code fo the question.

Definition at line 56 of file notificationservice.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ questionCompleted

void ViewSolutions::NotificationService::questionCompleted	(	bool	accepted,
		int	questionCode )

signal

questionCompleted This signal emited when youser clcik any buttons on question popup.

Parameters

accepted	are bool option with "true" value if the yesr click to accept button.
questionCode	are automaticly generated code of the question. For more information about code option see the setQuestion method.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setNotify() [1/2]

void ViewSolutions::NotificationService::setNotify ( const NotificationData & notify )

setNotify This method add new notification message of application.

Parameters

notify are message data.

Definition at line 35 of file notificationservice.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setNotify() [2/2]

void ViewSolutions::NotificationService::setNotify	(	const QString &	title = "",
		const QString &	text = "",
		const QString &	img = "",
		int	type = NotificationData::Normal )

setNotify This method set new notify message for user. When notify changed on main application windows shows notify message.

Parameters

title	are title of a notify window.
text	are text value of a notify window.
img	are url to image of a notify window.
type	are code of a notification type. For more information about notification type see the NotificationData enum.

Definition at line 67 of file notificationservice.cpp.

Here is the call graph for this function:

◆ setQuestion() [1/3]

int ViewSolutions::NotificationService::setQuestion	(	const Listner &	listner,
		const NotificationData &	question )

setQuestion This method sets information of the users question.

Parameters

listner	This is listner lyambda function.
question	are data of the question.

Returns: return question code. You must be save this code for check ansver of your qestion.

Definition at line 44 of file notificationservice.cpp.

Here is the call graph for this function:

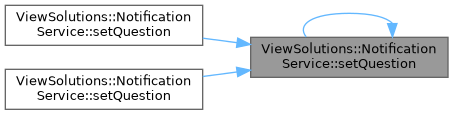

Here is the caller graph for this function:

◆ setQuestion() [2/3]

int ViewSolutions::NotificationService::setQuestion	(	const Listner &	listner,
		const QString &	title = "",
		const QString &	text = "",
		const QString &	img = "",
		int	code = 0 )

setQuestion This method set new question for user. When question changed on main application windows shows question.

Parameters

listner	This is listner lyambda function.
title	are title of a question window.
text	are text value of a question window.
img	are url to image of a queston window.
code	are code of question. This code must be sendet to the questionComplete method after buttons clik.

Definition at line 97 of file notificationservice.cpp.

Here is the call graph for this function:

◆ setQuestion() [3/3]

int ViewSolutions::NotificationService::setQuestion	(	QObject *	listnerObject,
		const QString &	listnerMethod,
		const QString &	title = "",
		const QString &	text = "",
		const QString &	img = "",
		int	code = 0 )

setQuestion This method set new question for user. When question changed on main application windows shows question.

Parameters

listnerObject	This is qml object with listner function.
listnerMethod	This is listner method name. Method signature : void(bool)
title	are title of a question window.
text	are text value of a question window.
img	are url to image of a queston window.
code	are code of question. This code must be sendet to the questionComplete method after buttons clik.

Definition at line 76 of file notificationservice.cpp.

Here is the call graph for this function:

◆ showHistory()

void ViewSolutions::NotificationService::showHistory ( )

showHistory - This method used for emit signal by which show notification menu.

Definition at line 116 of file notificationservice.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sigShowHistory

void ViewSolutions::NotificationService::sigShowHistory ( )

signal

sigShowHistory This signal is emitted when the notification history view should be shown (see showHistory).

Here is the call graph for this function:

Here is the caller graph for this function:

Property Documentation

◆ history

QObject* ViewSolutions::NotificationService::history

read

Definition at line 70 of file notificationservice.h.

◆ notificationsCount

int ViewSolutions::NotificationService::notificationsCount

read

Definition at line 72 of file notificationservice.h.

◆ notify

NotificationData ViewSolutions::NotificationService::notify

read

Definition at line 67 of file notificationservice.h.

◆ question

NotificationData ViewSolutions::NotificationService::question

read

Definition at line 68 of file notificationservice.h.

The documentation for this class was generated from the following files:

ViewSolutions/src/notificationservice.h
ViewSolutions/src/notificationservice.cpp

Signals

Public Member Functions

Static Public Member Functions

Properties

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~NotificationService()

Member Function Documentation

◆ countNotificationsChanged

◆ getService()

◆ history()

◆ historyListChanged

◆ modelId()

◆ notificationsCount()

◆ notify()

◆ notifyChanged

◆ question()

◆ questionChanged

◆ questionComplete()

◆ questionCompleted

◆ setNotify() [1/2]

◆ setNotify() [2/2]

◆ setQuestion() [1/3]

◆ setQuestion() [2/3]

◆ setQuestion() [3/3]

◆ showHistory()

◆ sigShowHistory

Property Documentation

◆ history

◆ notificationsCount

◆ notify

◆ question
