ViewSolutions::ListViewModel Class Reference

The ListViewModel class provides a QML list model with QObject data. More...

#include <listviewmodel.h>

Inheritance diagram for ViewSolutions::ListViewModel:

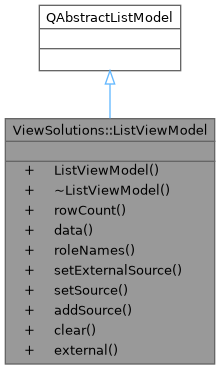

Collaboration diagram for ViewSolutions::ListViewModel:

Public Member Functions
	ListViewModel (QObject *ptr=nullptr)
	~ListViewModel ()
int	rowCount (const QModelIndex &parent=QModelIndex()) const
QVariant	data (const QModelIndex &index, int role) const
QHash< int, QByteArray >	roleNames () const
void	setExternalSource (const QList< QObject * > *newData)
	setExternalSource sets a new external data list. The model does not take ownership of the list content.
void	setSource (const QList< QObject * > &newData)
	setSource sets a new internal data list. The model takes ownership of the list content.
void	addSource (QObject *data)
	addSource adds one new QObject to the data list.
void	clear (bool fast=false)
	clear removes all data from the model and deletes the objects of the internal data list.
bool	external () const
	external returns true if the model uses an external data list.

Detailed Description

The ListViewModel class provides a QML list model with QObject data.

The model can be filled with an internal list of QObject pointers or with an external list. In the external case the model does not own the data, the data must stay valid while the model is in use.

The model exposes one role: modelData (see ListViewModelRoles::ModelData).

Example:

ViewSolutions::ListViewModel model;

// Internal data list (owned by the model):
model.addSource(myObject);
model.setSource({object1, object2});

// External data list (not owned by the model):
QList<QObject*> externalList = {object1, object2};
model.setExternalSource(&externalList);

QML usage:

ListView {
    model: listViewModel
    delegate: Item {
        property var data: modelData
    }
}

Definition at line 56 of file listviewmodel.h.

Constructor & Destructor Documentation

ListViewModel()

ViewSolutions::ListViewModel::ListViewModel

(

QObject *

ptr = nullptr

)

Definition at line 11 of file listviewmodel.cpp.

~ListViewModel()

ViewSolutions::ListViewModel::~ListViewModel

(

)

Definition at line 16 of file listviewmodel.cpp.

Here is the call graph for this function:

Member Function Documentation

addSource()

void ViewSolutions::ListViewModel::addSource

(

QObject *

data

)

addSource adds one new QObject to the data list.

Parameters

data	is the new data object.

Definition at line 76 of file listviewmodel.cpp.

Here is the call graph for this function:

clear()

void ViewSolutions::ListViewModel::clear

(

bool

fast = false

)

clear removes all data from the model and deletes the objects of the internal data list.

Parameters

fast	if true the objects are deleted with deleteLater, otherwise they are deleted directly.

Definition at line 86 of file listviewmodel.cpp.

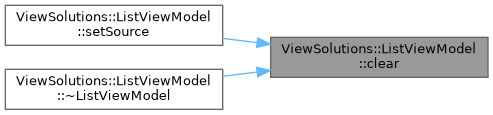

Here is the caller graph for this function:

data()

QVariant ViewSolutions::ListViewModel::data	(	const QModelIndex &	index,
		int	role ) const

Definition at line 27 of file listviewmodel.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

external()

bool ViewSolutions::ListViewModel::external

(

)

const

external returns true if the model uses an external data list.

Returns

true if the model uses an external data list.

Definition at line 98 of file listviewmodel.cpp.

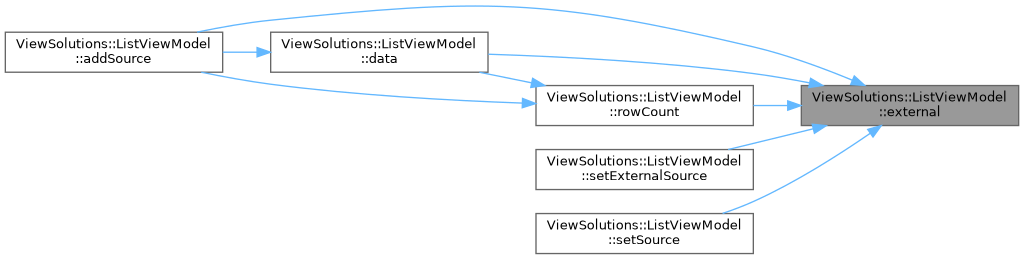

Here is the caller graph for this function:

roleNames()

QHash< int, QByteArray > ViewSolutions::ListViewModel::roleNames

(

)

const

Definition at line 39 of file listviewmodel.cpp.

rowCount()

int ViewSolutions::ListViewModel::rowCount

(

const QModelIndex &

parent = QModelIndex()

)

const

Definition at line 20 of file listviewmodel.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

setExternalSource()

void ViewSolutions::ListViewModel::setExternalSource

(

const QList< QObject * > *

newData

)

setExternalSource sets a new external data list. The model does not take ownership of the list content.

Parameters

newData

is pointer to the new external data list.

Definition at line 46 of file listviewmodel.cpp.

Here is the call graph for this function:

setSource()

void ViewSolutions::ListViewModel::setSource

(

const QList< QObject * > &

newData

)

setSource sets a new internal data list. The model takes ownership of the list content.

Parameters

newData

is the new internal data list.

Definition at line 59 of file listviewmodel.cpp.

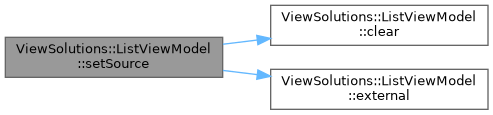

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• ViewSolutions/src/listviewmodel.h
• ViewSolutions/src/listviewmodel.cpp
